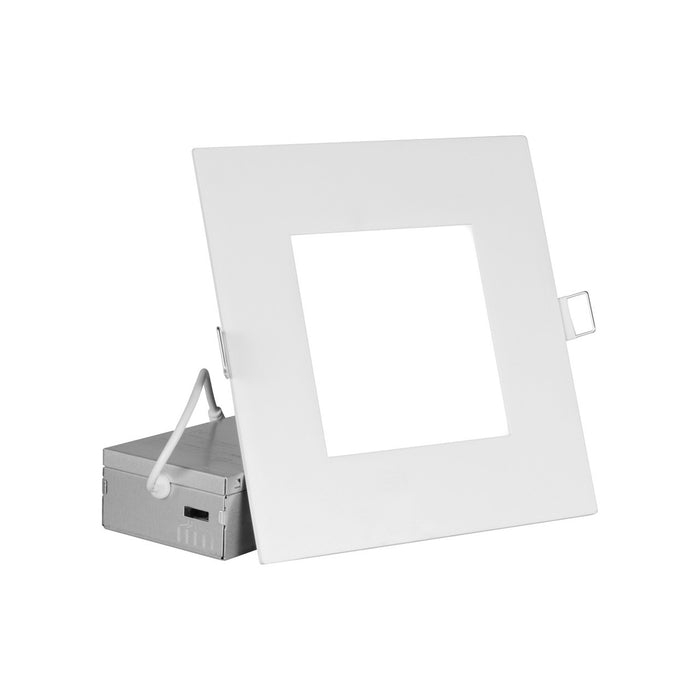

NICOR REL61120SSQWH 6" Square LED Downlight CCT Selectable 12W

Product Overview

The NICOR REL61120SSQWH is a 6-inch square edge-lit LED downlight with five selectable color temperatures. Its low-profile canless design installs directly into the ceiling without requiring a recessed housing, making it suitable for installations with limited plenum space.

Key Features & Design

• Functionality: Provides selectable 2700K, 3000K, 3500K, 4000K, or 5000K illumination with 90+ CRI.
• Installation context: Spring-loaded retention tabs allow direct installation into ceilings up to 3/4 inch thick without requiring a recessed housing.
• Notable specifications: 120VAC input, approximately 12W operation, 816–967 lumens depending on selected CCT, and dimmable to 5% with compatible TRIAC or ELV dimmers.
• Contractor-relevant details: IC rated, Air Tight, wet-location rated, and supplied with an off-board driver/junction box with three 1/2-inch knockouts and three-port poke-in connectors.

Performance / Benefits

Provides uniform edge-lit illumination with selectable CCT and a low-profile canless design for flexible recessed-lighting installations. The fixture is designed for direct ceiling installation and supports wet-location and insulation-contact applications.
