Satco 90-1543 GX23/GX23-2 Horizontal Snap-In Lamp Socket 75W 600V
by Satco
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$3.00
$3.00
-
$3.00
Current price
$3.00
Product Overview

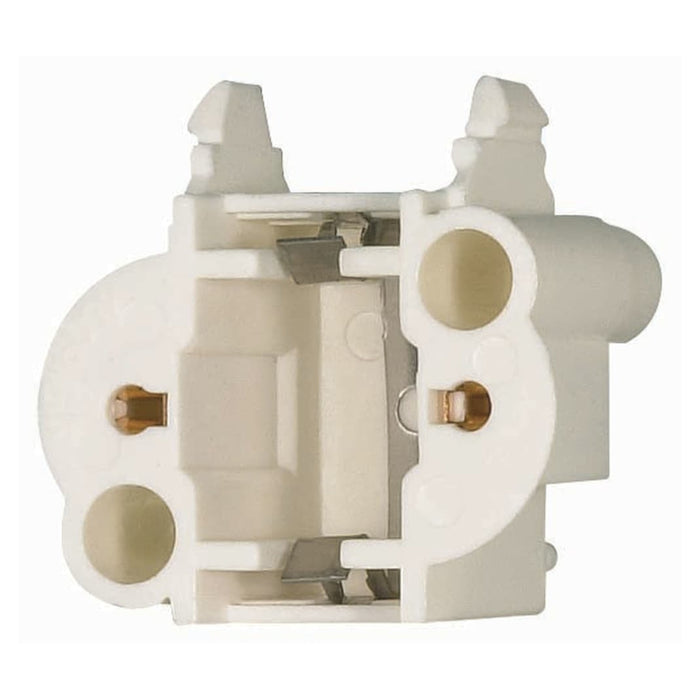

The Satco 90-1543 is a horizontal snap-in lamp socket designed for compatible 2-pin lamps with GX23 and GX23-2 bases. It supports CF13DS and CF13DD lamp configurations and is rated for up to 75W and 600V.
Key Features & Design
- Functionality: Provides the electrical connection and lamp support for compatible 2-pin GX23 and GX23-2 lamps.
- Installation context: Horizontal snap-in configuration for compatible fixture installations.
- Notable specifications: 75W maximum, 600V maximum, 0.125A, with compatibility for CF13DS and CF13DD lamps.
- Contractor-relevant details: Snap-in construction provides a straightforward replacement option when servicing compatible fixtures.
Performance / Benefits
The snap-in configuration provides a straightforward replacement option for compatible fixtures while maintaining the specified electrical connection for supported GX23 and GX23-2 lamps.
Specifications
Details
| Brand: | Satco |
|---|---|
| Manufacturer Part Number: | 90-1543 |
| UPC: | 45923915437 |
| Wattage: | 75 |
| Input Voltage: | 600V Max |
| Special Features: | Horizontal Snap-In; 2-Pin; GX23/GX23-2 Compatible |
| Certifications: | cULus Listed |
| Spec Sheet: | Download PDF |
Dimensions
| Length: | 3.5 |
|---|---|
| Width: | 1.5 |
| Height: | 5 |
