SATCO S23134 EX39 Corn Cob LED Lamp 150W/115W/80W Selectable 3000K/4000K/5000K

Product Overview

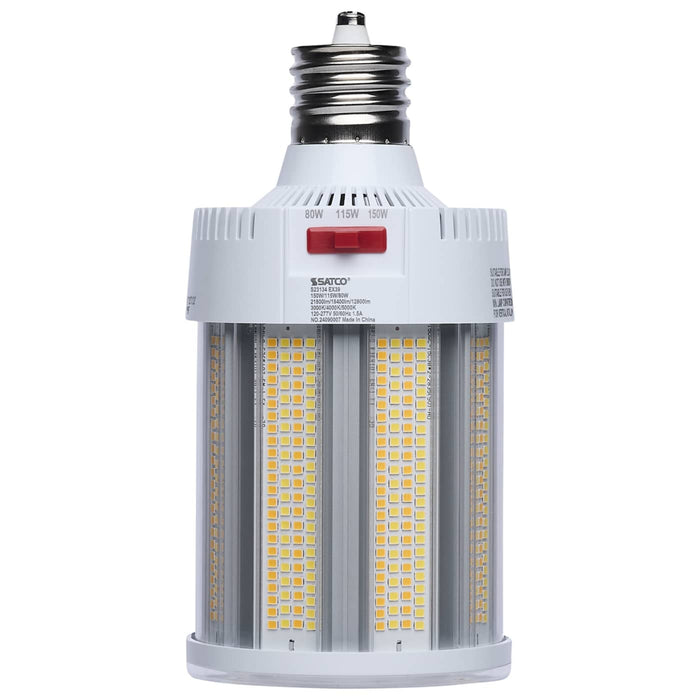

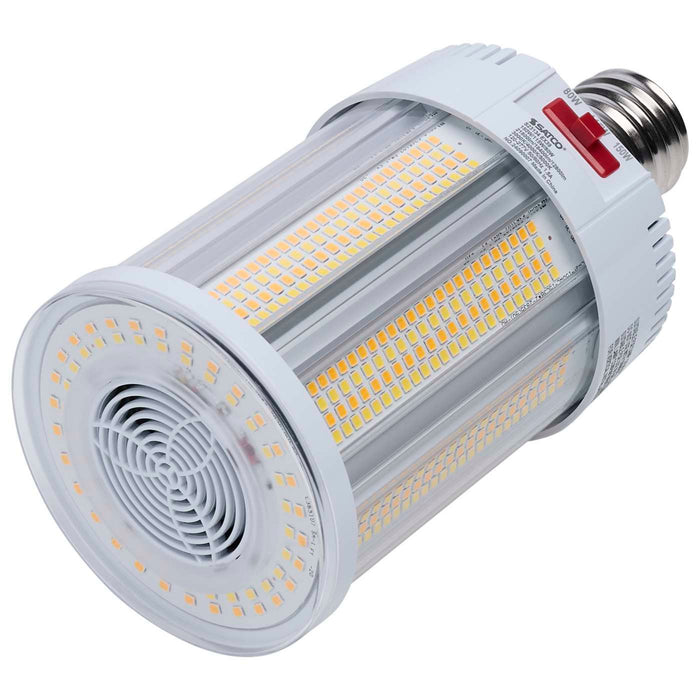

The SATCO S23134 is a field-selectable LED corn cob lamp designed for ballast-bypass HID retrofit applications. It provides three wattage settings and three color-temperature choices in one lamp, allowing contractors to adjust output for the existing space without stocking separate fixed-wattage and fixed-CCT versions. The EX39 mogul extended base and universal operating position support common commercial and industrial retrofit configurations.

Key Features & Design

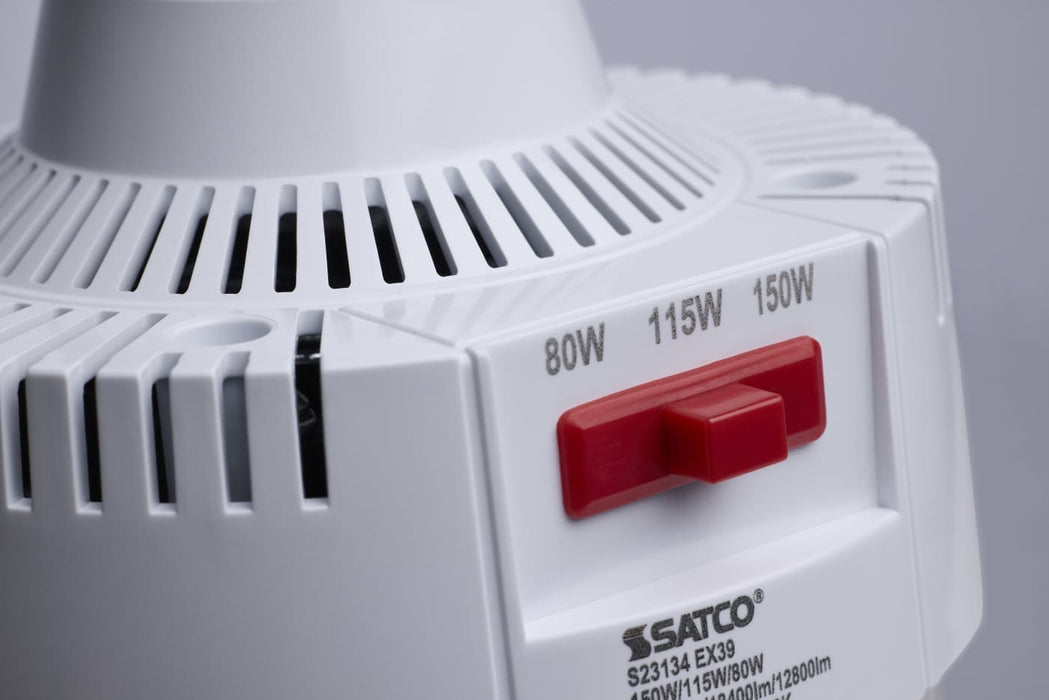

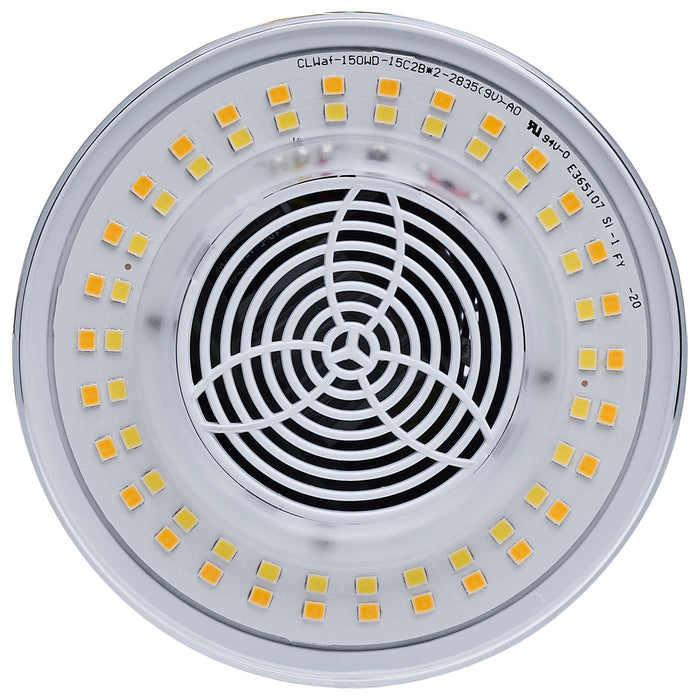

• Functionality: Selectable 150W, 115W, or 80W operation with corresponding listed lumen outputs of 24,812, 19,816, or 14,270 lumens. Color temperature is field selectable at 3000K, 4000K, or 5000K. The lamp is step-dimmable only through its wattage selection switch and is not compatible with wall dimmers or other external dimming controls.
• Installation context: Type B ballast-bypass installation on 120-277V systems. The lamp is rated for enclosed fixtures but is specifically not for use in vapor-tight fixtures. Minimum compartment dimensions are also specified by the manufacturer and should be checked before retrofit.
• Notable specifications: 150/115/80W; 24,812/19,816/14,270 lm; 120-277V; CRI 80+; 280-degree beam angle; EX39 base; 50,000-hour rating; IP54; 6kV built-in surge protection.
• Contractor-relevant details: Verify ballast bypass wiring, fixture compartment size, base type, and clearance before installation. The selectable output can help tune retrofit performance for the existing HID application and reduce the number of replacement lamp SKUs needed on service vehicles.

Performance / Benefits

The lamp is designed as a 450W HID replacement and combines high lumen output, field-selectable wattage, and selectable CCT. DLC approval and cULus listings support commercial retrofit use where the product specifications align with the existing fixture and project requirements.
