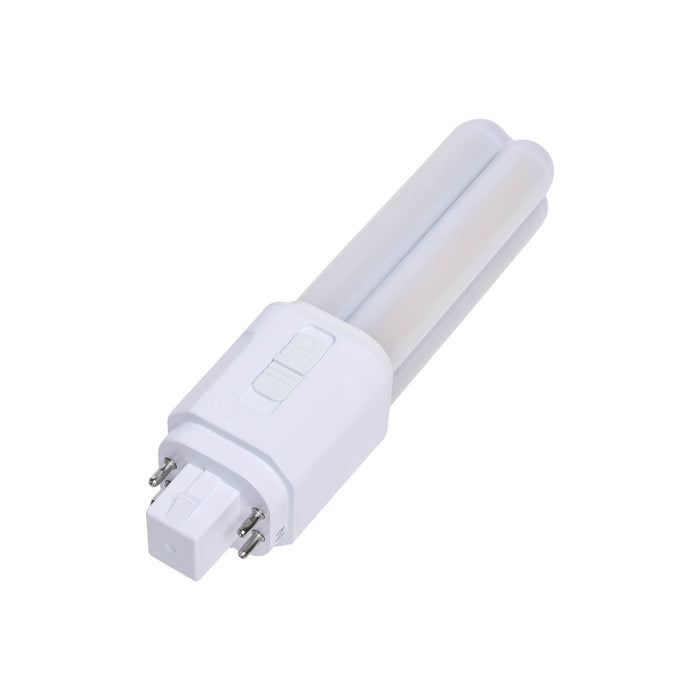

SATCO S29884 7W PLC LED Lamp, G24q 4-Pin, 900 Lumens, CCT Selectable, 120-277V
Product Overview
The SATCO S29884 is a 7W PLC LED lamp designed for Type A/B retrofit applications, providing contractors with the option to operate the lamp using a compatible ballast or through ballast-bypass wiring. It delivers 900 lumens and offers selectable 2700K, 3000K, 3500K, or 4000K color temperature. The G24q 4-pin base and 120-277V rating support compatible commercial lighting retrofit configurations.
Key Features & Design
- Functionality: Provides 7W operation with 900-lumen output and four selectable CCT settings from 2700K through 4000K. The lamp is listed as dimmable, with SATCO directing users to check the ballast manufacturer for dimmer compatibility. It provides a 360-degree beam angle and CRI 80+.
- Installation context: Type A operation requires a compatible ballast, while Type B operation uses ballast bypass. The lamp operates on 120-277V and uses a G24q 4-pin base. It has a universal operating position and is rated for enclosed fixtures and damp locations. Minimum compartment dimensions are 11.81 in. L × 6.31 in. W × 2.75 in. H.
- Notable specifications: 7W; 900 lm; 120-277V; 2700K/3000K/3500K/4000K selectable CCT; CRI 80+; G24q 4-pin base; 360-degree beam angle; 50,000-hour rating; IP20; built-in 0.5kV surge protection.
- Contractor-relevant details: Confirm whether the installation will retain a compatible ballast or use ballast-bypass wiring. Verify the existing G24q 4-pin socket, ballast compatibility when using Type A operation, compartment dimensions, and dimming compatibility before installation.
Performance / Benefits
The S29884 delivers 900 lumens from 7W and is specified as an 18W fluorescent equivalent. Type A/B operation provides additional retrofit flexibility, while selectable CCT allows contractors to adjust the installed color temperature without changing lamps. The product carries a 50,000-hour rating and five-year warranty and is cULus certified, FCC compliant, RoHS compliant, and NSF approved.
Specifications
Details
| Brand: | SATCO |
|---|---|
| Manufacturer Part Number: | S29884 |
| UPC: | 45923298844 |
| Wattage: | 7 |
| Lumens: | 900 |
| Input Voltage: | 120-277V |
| Kelvin: | 4000 |
| CRI: | 81 |
| Color: | White |
| Rated Hours: | 50000 |
| Special Features: | Type A/B operation; Ballast compatible or ballast bypass; CCT selectable; 2700K/3000K/3500K/4000K; 360° beam angle; Built-in 0.5kV surge protection; Universal operating position; Rated for enclosed fixtures; 18W fluorescent equivalent; 5-year warranty |
| Certifications: | cULus Certified; FCC Compliant; RoHS Compliant; NSF Approved; IP20 |
| Dimmable: | Yes |
| Spec Sheet: | Download PDF |
Dimensions
| Length: | 1.46" |
|---|---|
| Width: | 1.46" |
| Height: | 5.83" |
