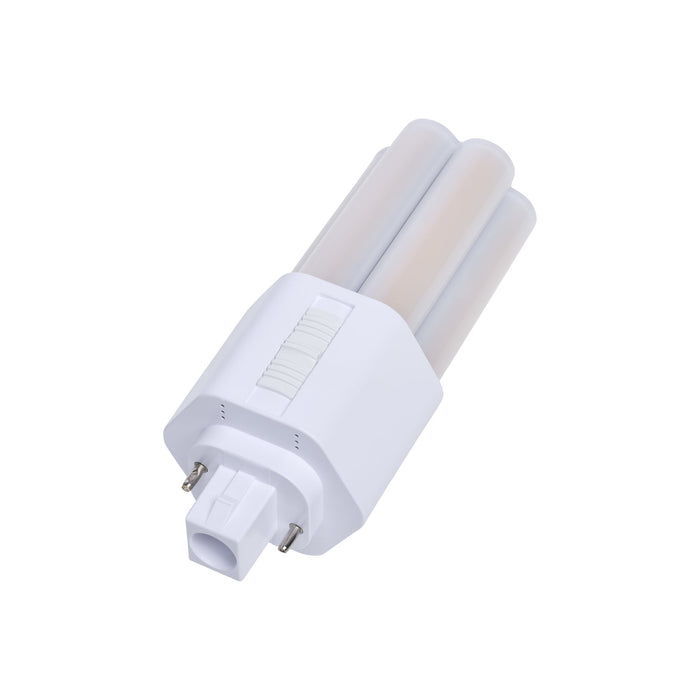

SATCO S29885 7W PLT LED Lamp, GX24d 2-Pin, 960 Lumens, CCT Selectable, 120-277V

Product Overview

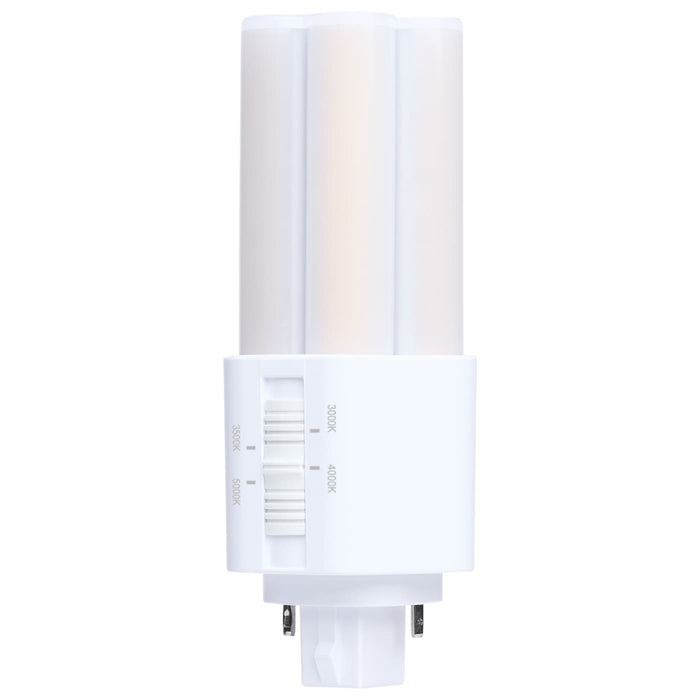

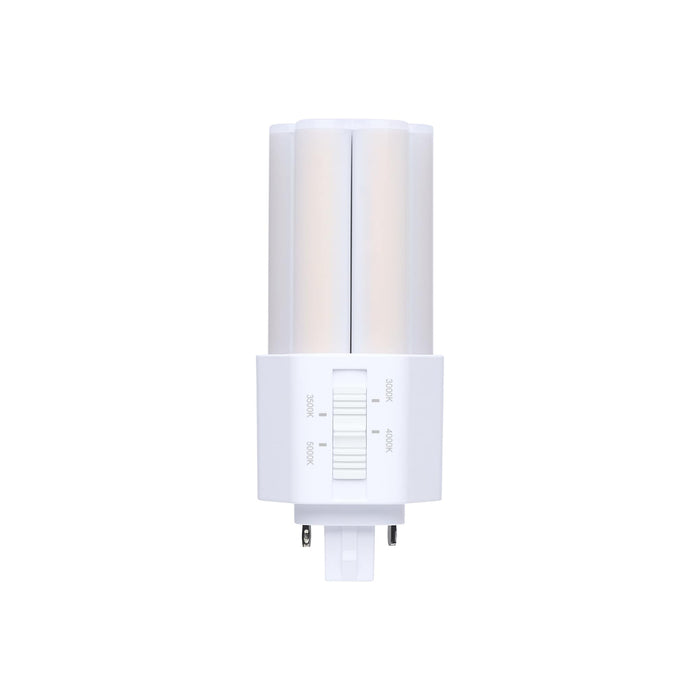

The SATCO S29885 is a 7W PLT LED lamp designed for Type B ballast-bypass retrofit applications. It delivers 960 lumens and provides four selectable color temperatures—3000K, 3500K, 4000K, and 5000K—allowing the installed light appearance to be selected for the application. The GX24d 2-pin base, 120-277V input, and universal operating position support compatible commercial lighting retrofits.

Key Features & Design

• Functionality: Provides 7W operation with 960-lumen output and selectable 3000K, 3500K, 4000K, or 5000K CCT. The lamp is non-dimmable and provides a 360-degree beam angle with CRI 80+.
• Installation context: Type B ballast-bypass operation on 120-277V systems with a GX24d 2-pin base. The lamp has a universal operating position and is rated for enclosed fixtures, indoor use, and damp locations.
• Notable specifications: 7W; 960 lm; 120-277V; 3000K/3500K/4000K/5000K selectable CCT; CRI 80+; GX24d 2-pin base; 360-degree beam angle; 50,000-hour rating; IP20; built-in 0.5kV surge protection.
• Contractor-relevant details: Verify ballast-bypass wiring, GX24d socket configuration, fixture clearance, and the manufacturer-specified minimum compartment size before installation. Selectable CCT allows one lamp to accommodate multiple color-temperature requirements.

Performance / Benefits

The S29885 delivers 960 lumens from 7W and is specified as an 18W fluorescent equivalent. Its selectable CCT, 50,000-hour rated life, universal operating position, and enclosed-fixture rating provide flexibility for compatible retrofit applications. The lamp is cULus certified, FCC compliant, RoHS compliant, NSF approved, and backed by a five-year manufacturer warranty
