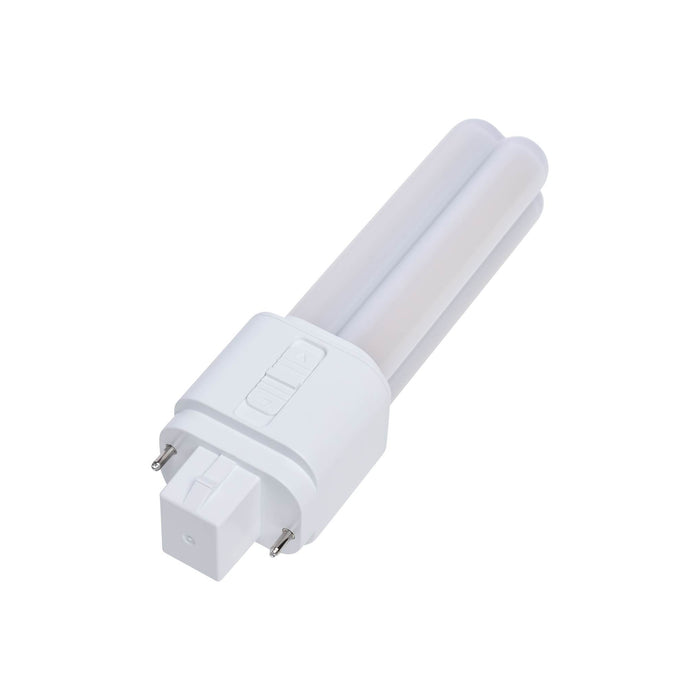

SATCO S29898 7W PLC LED Lamp, GX32d 2-Pin, 900 Lumens, CCT Selectable, 120-277V

Product Overview

The SATCO S29898 is a 7W PLC LED retrofit lamp featuring Type A/B operation, a GX32d 2-pin base, and 120-277V input. It delivers 900 lumens and provides selectable 2700K, 3000K, 3500K, or 4000K color temperature. The lamp is specified as a 22W fluorescent equivalent and provides contractors with multiple CCT options in one replacement lamp.

Key Features & Design

• Functionality: Provides 7W operation with 900-lumen output and four selectable color-temperature settings. It is non-dimmable and provides a 360-degree beam angle with CRI 80+ and >0.9 power factor.
• Installation context: Type A/B operation on 120-277V systems with a GX32d 2-pin base. The lamp has a universal operating position and is rated for enclosed fixtures, indoor applications, and damp locations. SATCO specifies minimum compartment dimensions of 11.81 in. L × 6.31 in. W × 2.75 in. H.
• Notable specifications: 7W; 900 lm; 120-277V; 2700K/3000K/3500K/4000K selectable CCT; CRI 80+; GX32d 2-pin base; 360-degree beam angle; 50,000-hour rating; IP20; built-in 0.5kV surge protection.
• Contractor-relevant details: Confirm the GX32d 2-pin socket, Type A/B installation requirements, fixture compartment size, and available clearance before installation. Selectable CCT allows one stocked lamp to accommodate multiple specified color temperatures.

Performance / Benefits

The S29898 provides 900 lumens from 7W and is specified as a 22W fluorescent equivalent. The combination of selectable CCT, universal operating position, 50,000-hour rating, and enclosed-fixture compatibility supports flexible replacement in qualifying installations. It is cULus certified, FCC compliant, RoHS compliant, NSF approved, and backed by a five-year warranty.
