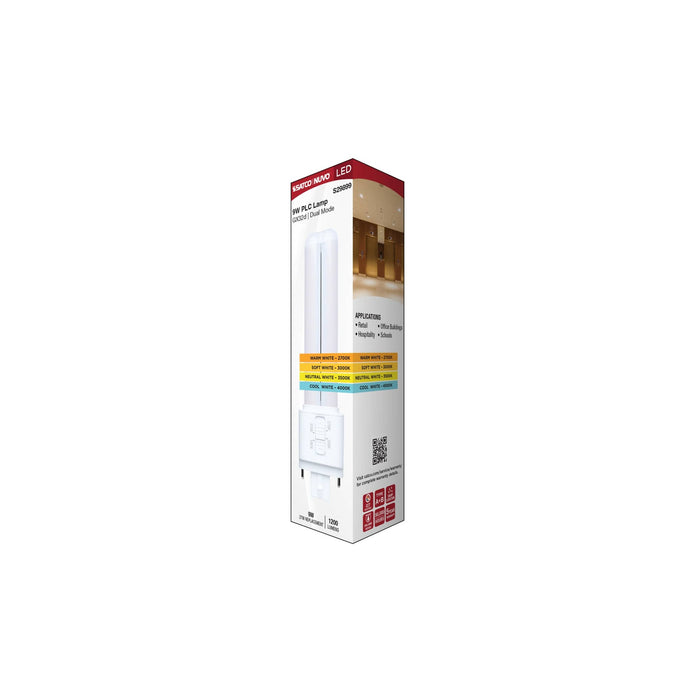

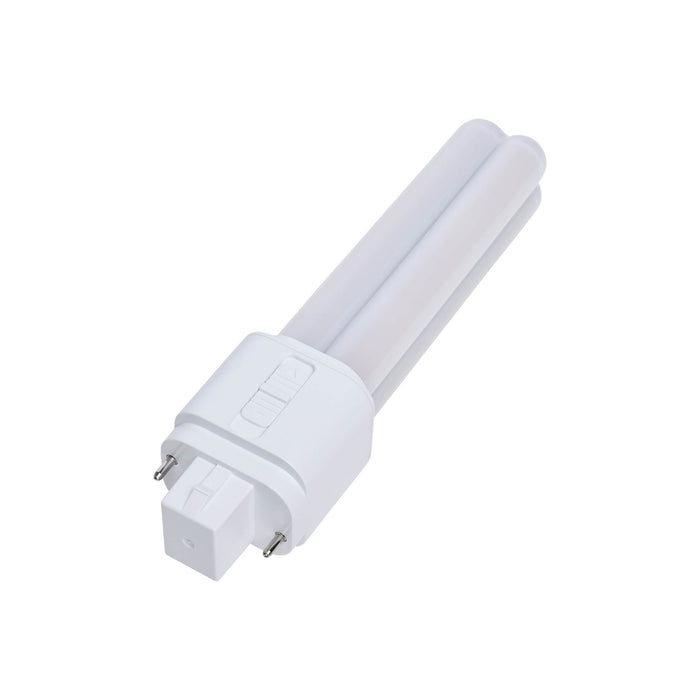

SATCO S29899 9W PLC LED Lamp, GX32d 2-Pin, 1200 Lumens, CCT Selectable, 120-277V

Product Overview

The SATCO S29899 is a 9W PLC LED retrofit lamp with Type A/B operation and a GX32d 2-pin base. It delivers 1,200 lumens and provides field-selectable 2700K, 3000K, 3500K, or 4000K color temperature. Designed for 120-277V operation, the lamp is specified as a 28W fluorescent equivalent for compatible retrofit applications.

Key Features & Design

• Functionality: Provides 9W operation and 1,200-lumen output with four selectable CCT settings. The lamp is non-dimmable and features a 360-degree beam angle, CRI 80+, and >0.9 power factor.
• Installation context: Type A/B configuration for 120-277V systems with a GX32d 2-pin base. The lamp supports universal operating position and is rated for enclosed fixtures, indoor use, and damp locations. The specified minimum compartment size is 11.81 in. L × 6.31 in. W × 2.75 in. H.
• Notable specifications: 9W; 1,200 lm; 120-277V; 2700K/3000K/3500K/4000K selectable CCT; CRI 80+; GX32d 2-pin base; 360-degree beam angle; 50,000-hour rating; IP20; built-in 0.5kV surge protection.
• Contractor-relevant details: Verify the existing GX32d 2-pin socket, Type A/B installation requirements, fixture compartment dimensions, and clearance before retrofit. Four selectable color temperatures allow the installed CCT to be matched to project requirements from a single lamp SKU.

Performance / Benefits

The S29899 produces 1,200 lumens from 9W and is listed as a 28W fluorescent equivalent. Its selectable CCT, 50,000-hour rated life, universal operating position, and enclosed-fixture rating provide practical flexibility for compatible retrofit projects. The lamp is cULus certified, FCC compliant, RoHS compliant, NSF approved, and covered by a five-year warranty.
