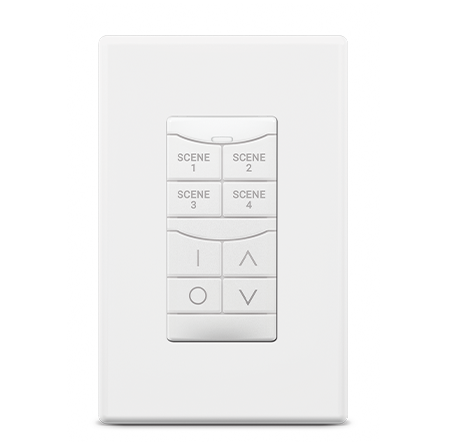

SensorWorx SWD-804-2P-WH Digital 2-Zone Dimmer Wall Station White

Product Overview

The SensorWorx SWD-804-2P-WH is a digital 2-zone dimmer wall station designed for manual switching and raise/lower dimming control in commercial lighting applications. It provides independent control of two lighting zones from a single-gang device and pairs with SensorWorx digital load controllers for integrated lighting control. The manufacturer specifically identifies the SWD-804-2P as the Digital Remote 2-Zone Dimmer Wall Station.

Key Features & Design

• Functionality: Provides dimming and On/Off control for up to two lighting zones from a single-gang wall station. It supports multi-way switching and dimming configurations when paired with compatible SensorWorx digital controls.
• Installation context: Designed for commercial lighting-control applications including classrooms, open areas, conference rooms, hallways, small offices, copy rooms, private restrooms, and break rooms.
• Notable specifications: 15VDC operating voltage; 8mA current draw; proprietary SensorWorx digital protocol; topology-free 3-wire digital data line; 1,000 ft point-to-point wiring distance; 4,000 ft total bus length; digitally encrypted communications; white finish.
• Contractor-relevant details: Uses a topology-free 3-wire digital architecture with 18/3 cable recommended. The unit mounts in a 1-gang wall box with 3.28-inch hole spacing and can share multi-gang boxes with other devices.

Performance / Benefits

The SWD-804-2P-WH provides independent dimming and switching control for two lighting zones while simplifying commercial lighting-control installation through SensorWorx's 3-wire digital architecture. Additional compatible remote dimmers and switches can be paired for control from multiple locations, including 3-way and multi-way configurations.
