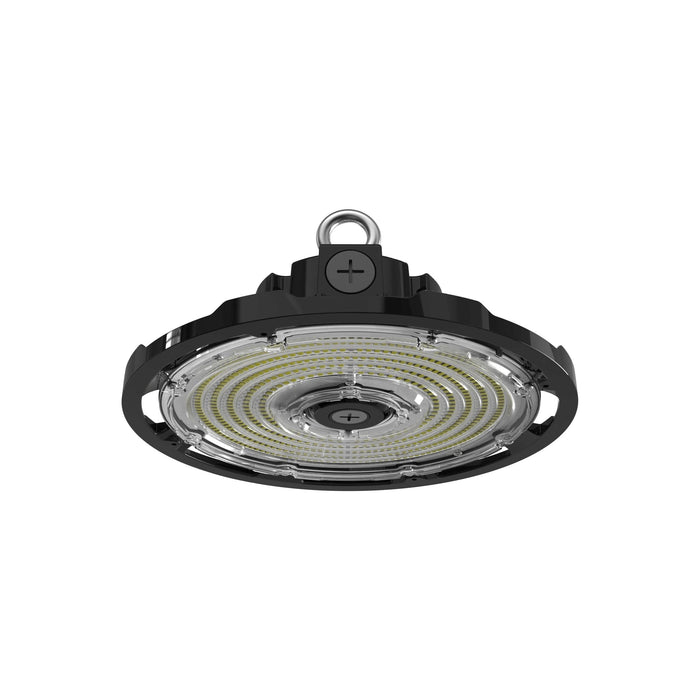

TCP EUFOUZDSW3CCT 10.2-Inch UFO LED High Bay 150W/120W/81W 4000K/5000K Selectable 120-277V

Product Overview

The TCP EUFOUZDSW3CCT LED Elite UFO High Bay is a compact, heavy-duty high-bay fixture designed for warehouses, distribution centers, commercial facilities, retail spaces, schools, and gymnasiums. Its selectable SW3 lumen package provides 81W, 120W, or 150W operation with approximately 14,000, 19,800, or 25,500 lumens. A field-selectable 4000K/5000K CCT system gives contractors flexibility to match project lighting requirements without stocking separate color-temperature models.

Key Features & Design

• Functionality: Three selectable wattages, two selectable CCT settings, instant-on performance, and smooth 0-10V dimming.
• Installation context: Designed for open-ceiling and high-bay applications; hangs from the included eye bolt, with optional yoke and pendant mounting accessories.
• Notable specifications: 120-277V; 81/120/150W; approximately 14,000/19,800/25,500 lm; 4000K/5000K; IP65; IK10; 10.2 in diameter; 6.1 in height with eyebolt; 4.3 in fixture depth.
• Contractor-relevant details: Includes a 6-ft power cord and supports field-installed sensor, reflector, mounting, and emergency-backup accessories. The die-cast aluminum housing and wet-location rating support demanding installations.

Performance / Benefits

Selectable output and CCT reduce SKU requirements while up to 165 LPW efficacy helps lower energy use. The durable IP65 and IK10 construction, 0-10V dimming, and long-life LED system make this fixture a practical replacement for traditional HID high bays.
