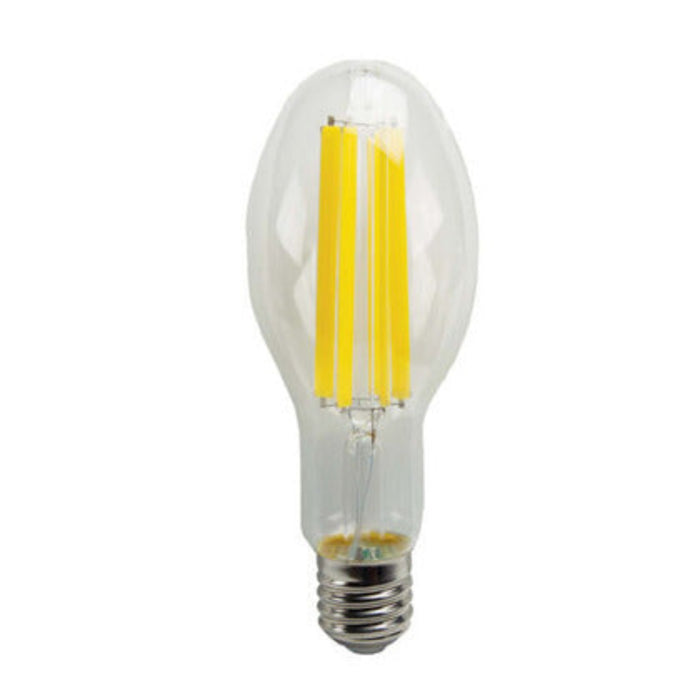

TCP FED28N25040E39CL 40W LED HID Replacement Lamp E39 4000K 8,000 Lumens

Product Overview

The TCP FED28N25040E39CL High Lumen LED Filament Lamp is a 40W LED HID replacement lamp designed as a direct HID metal halide replacement for commercial and industrial retrofit applications.. Delivering 8,000 lumens at 4000K, this ballast-bypass LED lamp features an ED28 bulb shape, E39 mogul base, and 360° light distribution, making it an energy-efficient replacement for traditional HID metal halide lamps in open or enclosed fixtures.

Key Features & Design

• Functionality: 40W LED filament HID replacement lamp producing 8,000 lumens at 4000K with 360° omnidirectional light distribution for uniform illumination.
• Installation context: Designed for ballast-bypass installation in existing E39 mogul-base HID fixtures, including high bays, low bays, wall packs, bollards, parking structures, warehouses, retail facilities, and large outdoor areas.
• Notable specifications: Brand: TCP; Model: FED28N25040E39CL; ED28 bulb shape; E39 mogul base; 40W; 8,000 lumens; 4000K neutral white; CRI ≥80; 120–277V; 200 lm/W efficacy; Dimensions: 8.2 in H × 3.5 in W × 3.5 in L.
• Contractor-relevant details: Type B ballast-bypass installation, universal burn position, suitable for open or enclosed fixtures, wet-location rated, instant start, lightweight construction, and backed by a 5-year limited warranty.

Performance / Benefits

The TCP FED28N25040E39CL provides exceptional energy savings of more than 75% compared to traditional HID metal halide lamps while delivering bright, uniform illumination. Its ballast-bypass design simplifies maintenance, and the high 200 lm/W efficacy helps reduce operating costs in demanding commercial and industrial lighting applications.
