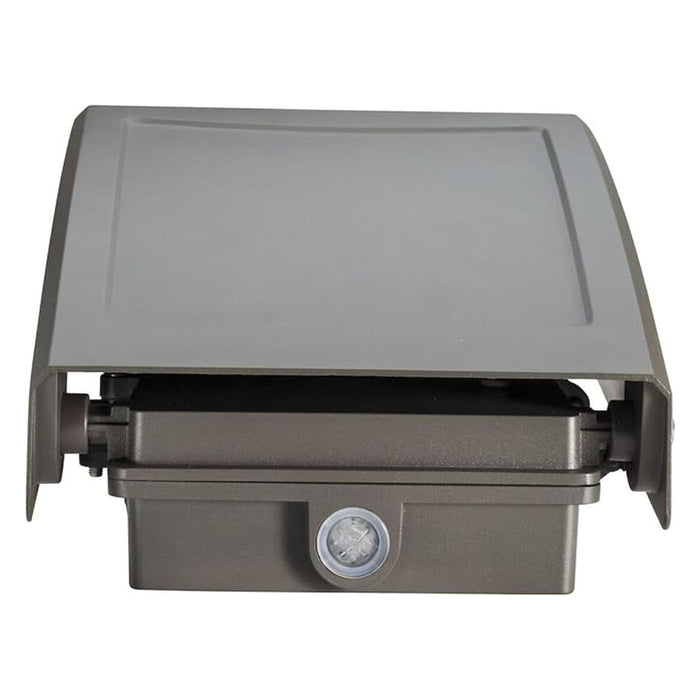

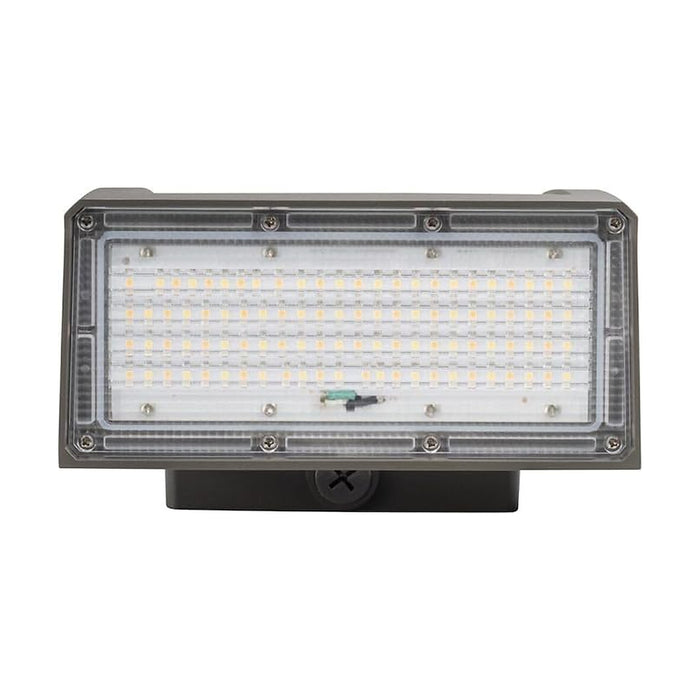

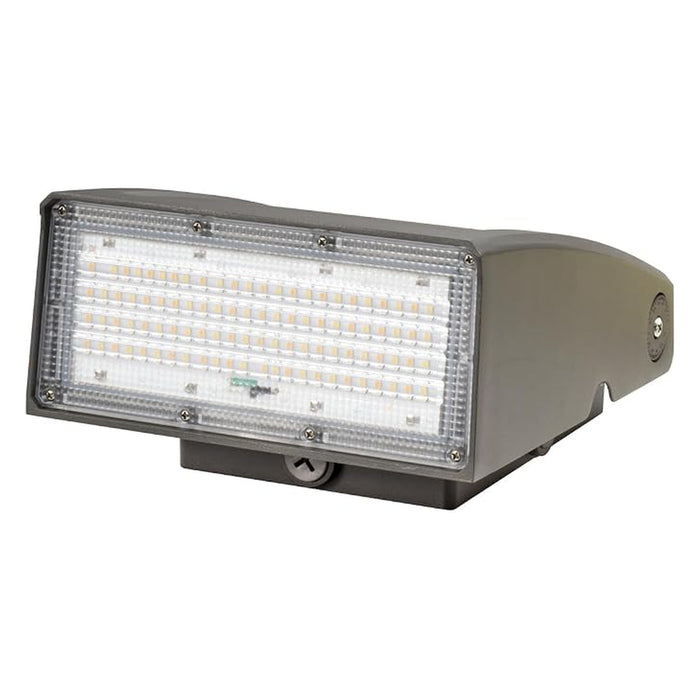

Topaz WPA-75W-PCTS-BZ-PC Slim Adjustable LED Wall Pack 45/60/75W 3-CCT Photocell

Product Overview

The Topaz WPA-75W-PCTS-BZ-PC is a slim adjustable LED wall pack with selectable 45W, 60W, or 75W output and 3000K, 4000K, or 5000K CCT. Its bronze housing and integrated dusk-to-dawn photocell provide configurable outdoor lighting control.

Key Features & Design

• Functionality: Three selectable wattages and three selectable CCTs provide up to nine field-configurable lighting combinations, with 0-10V dimming down to 10%.
• Installation context: Designed for building exteriors, walkways, security lighting, perimeter lighting, warehouses, apartments, hotels, and other commercial or residential outdoor applications.
• Notable specifications: 45/60/75W, 120-277V, 6,060/7,570/9,440 lumens, 3000K/4000K/5000K, 84 minimum CRI, Type II distribution, and up to 140 lm/W efficacy.

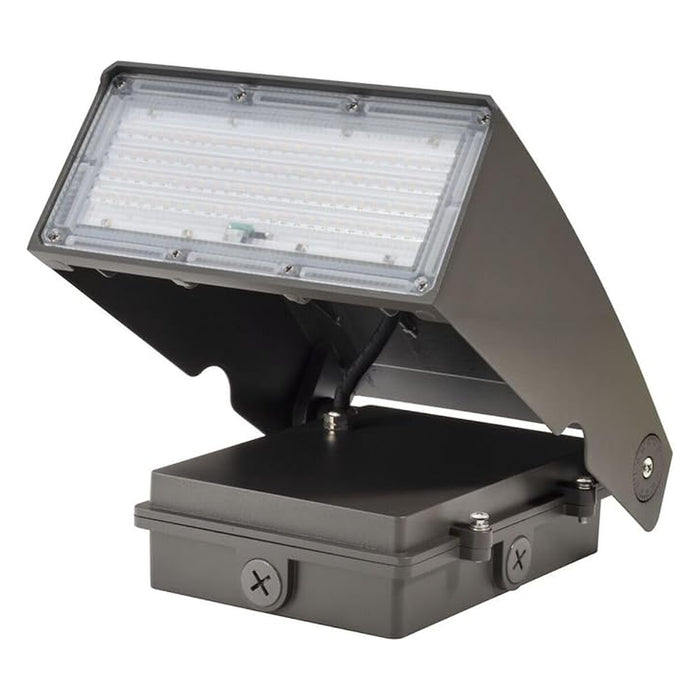

• Contractor-relevant details: Adjustable housing provides up to 90° aiming, while four 1/2" NPT threaded hubs support conduit or accessories. Integrated dusk-to-dawn photocell, IP65 rating, IK10 impact rating, and wet-location rating support outdoor installations.

Performance / Benefits

Combines selectable wattage and CCT, adjustable aiming, automatic dusk-to-dawn operation, and durable outdoor construction for flexible wall-mounted area lighting.
