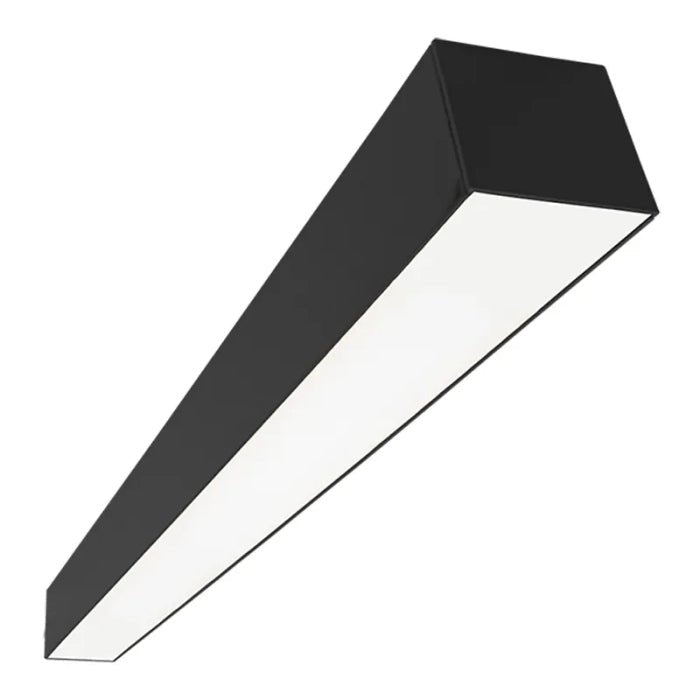

Westgate 4FT SCX Linear LED Fixture 40W CCT Selectable 0–10V Dimming

Product Overview

The Westgate SCX-4FT-40W-MCT4-D-BK is a 4-foot linear LED fixture designed for commercial architectural lighting applications requiring modular installation flexibility, selectable color temperature functionality, and energy-efficient illumination. Operating at 40W with 120–277VAC input, the fixture delivers 4400 lumens while integrating seamlessly into the SCX modular linear lighting system for continuous-run and custom lighting layouts.

Key Features & Design

• Functionality: 4-foot modular linear LED fixture with selectable color temperature operation and 0–10V dimming capability for architectural and commercial lighting applications.
• Installation context: Designed for surface-mounted, suspended, recessed, wall-mounted, and continuous-run commercial lighting installations in offices, retail spaces, conference rooms, lobbies, educational facilities, corridors, hospitality environments, and modern interior architectural applications.
• Notable specifications: 120–277VAC operation; 40W power consumption; 4400 lumen output; selectable 3000K/3500K/4000K/5000K color temperatures; 0–10V dimming; CRI ≥80; 110 LPW efficacy; IP54 indoor rating; aluminum housing with matte black finish; opal polycarbonate lens; beam angle of 104.8°H x 100.5°V; 50,000-hour rated life; modular linkable SCX system compatibility; surface, suspended, recessed, and wall-mount installation support; UL listed; DLC listed.
• Contractor-relevant details: The modular SCX system supports continuous-run lighting layouts using linkable fixture components and corner modules, helping simplify custom architectural lighting installations. Multiple mounting options provide installation flexibility across varied commercial environments, while selectable CCT functionality reduces the need to stock multiple fixture variants. Adjustable suspension accessories and factory-installed options further streamline project customization and field installation.

Performance / Benefits

In commercial architectural lighting applications, the SCX-4FT-40W-MCT4-D-BK delivers uniform, glare-reduced illumination for offices, retail spaces, corridors, conference rooms, and other modern interior environments. Its modular linear design supports seamless continuous-run lighting layouts with consistent visual appearance, while selectable color temperature functionality allows flexible field configuration for varying applications. Integrated 0–10V dimming capability supports energy-efficient lighting control, and the durable aluminum housing with IP54 rating provides reliable long-term performance in commercial indoor environments.
