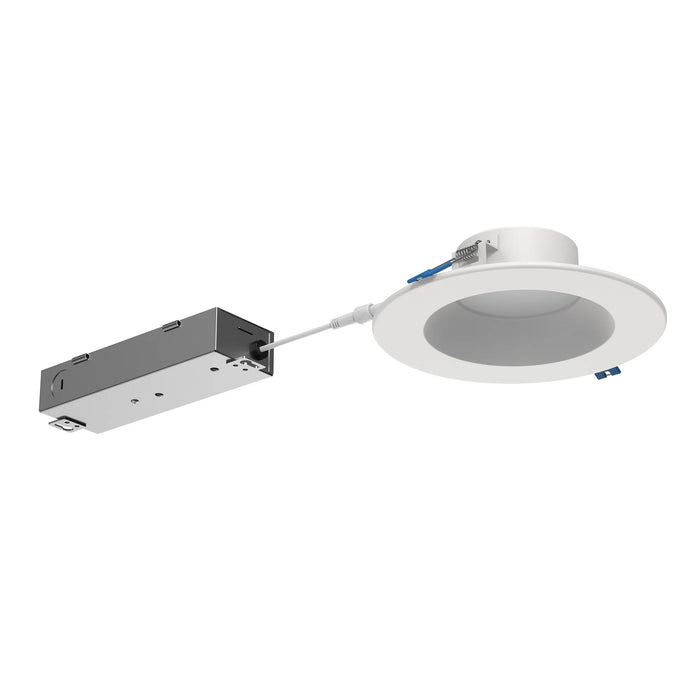

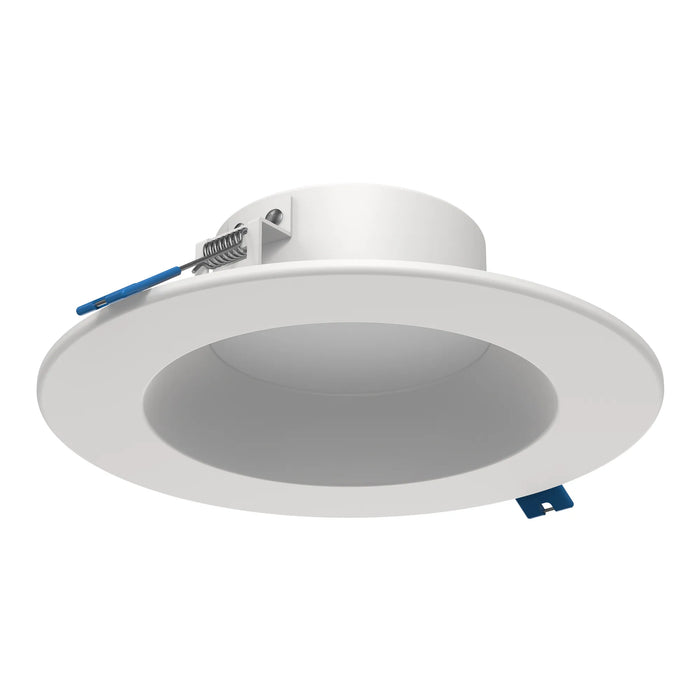

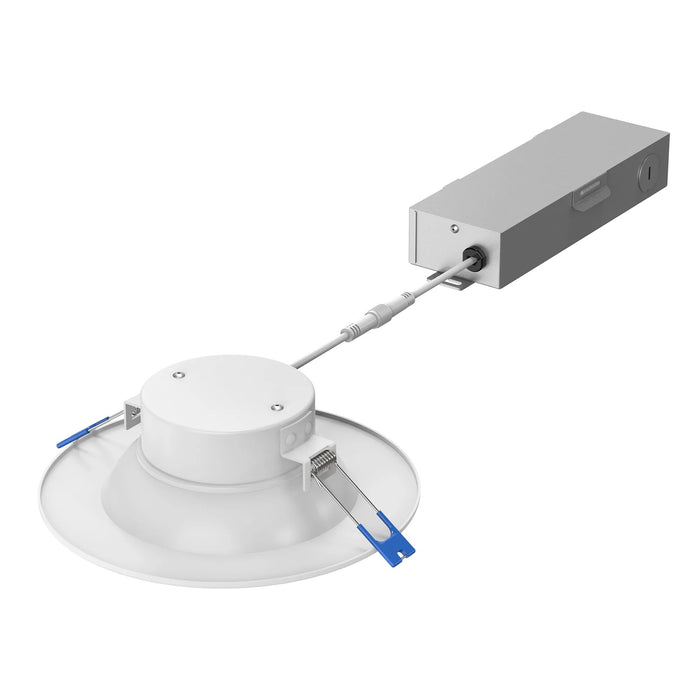

Westgate CRLB6-10-18W-MCTP5-WH 6" LED Recessed Downlight 18W 5CCT White

Product Overview

The Westgate CRLB6-10-18W-MCTP5-WH Builder Series Commercial Recess Light is a 6-inch recessed LED downlight designed for new construction and retrofit applications. Featuring field-selectable wattage and five selectable color temperatures, this integrated LED fixture provides installation flexibility while reducing inventory requirements. With 0-10V dimming, 120-277V universal voltage, and up to 1,548 lumens, it delivers efficient, high-quality illumination for residential and commercial interiors. :contentReference[oaicite:0]{index=0}

Key Features & Design

• Functionality: Field-selectable 10W, 15W, or 18W output with selectable 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures. Produces up to 1,548 lumens with 90+ CRI and smooth 0-10V dimming.
• Installation context: Designed for recessed installation in new construction and remodeling projects. Suitable for closets, corridors, storage rooms, attics, offices, retail spaces, and general residential or commercial lighting.
• Notable specifications: Brand: Westgate; Model: CRLB6-10-18W-MCTP5-WH; Size: 6-inch; Voltage: 120-277V AC; Beam Angle: 95°; White powder-coated spun aluminum trim; Integrated LED.
• Contractor-relevant details: MCT5 switch located on the light engine, isolated driver for improved thermal management, Type IC rated, wet-location approved, 50,000-hour rated life, cUL Listed, California Title 24/JA8 compliant, and backed by a 5-year warranty.

Performance / Benefits

The CRLB6-10-18W-MCTP5-WH combines three wattage levels and five color temperatures into one fixture, reducing inventory while allowing on-site lighting adjustments. Its all-in-one housing eliminates the need for a separate recessed can, simplifying installation. High CRI, smooth dimming, and wet-location approval make it an excellent solution for residential and commercial lighting projects requiring dependable, configurable performance.
