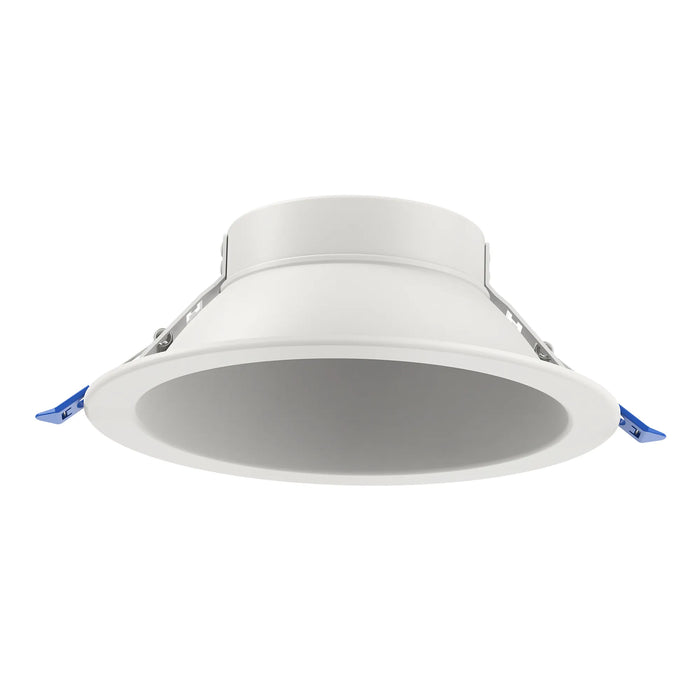

Westgate CRLB8-18-30W-MCTP5-WH 8" LED Recessed Downlight 30W 5CCT White

Product Overview

The Westgate CRLB8-18-30W-MCTP5-WH Builder Series Commercial Recess Light is an 8-inch integrated LED downlight designed for new construction and remodel applications. Featuring field-selectable wattage and five selectable color temperatures, this recessed fixture delivers up to 2,580 lumens while allowing contractors to customize light output during installation. Its remote driver, 0-10V dimming, and Type IC construction make it an efficient, flexible solution for residential and commercial lighting projects. :contentReference[oaicite:0]{index=0}

Key Features & Design

• Functionality: Field-selectable 18W, 24W, or 30W output with selectable 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures. Produces up to 2,580 lumens with 90+ CRI and smooth 0-10V dimming.
• Installation context: Designed for recessed ceiling installation in new construction and remodeling applications. Ideal for closets, corridors, storage rooms, attics, offices, retail spaces, and general residential or commercial lighting.
• Notable specifications: Brand: Westgate; Model: CRLB8-18-30W-MCTP5-WH; Size: 8-inch; Voltage: 120-277V AC; Beam Angle: 95°; White powder-coated spun aluminum trim; Remote LED driver.

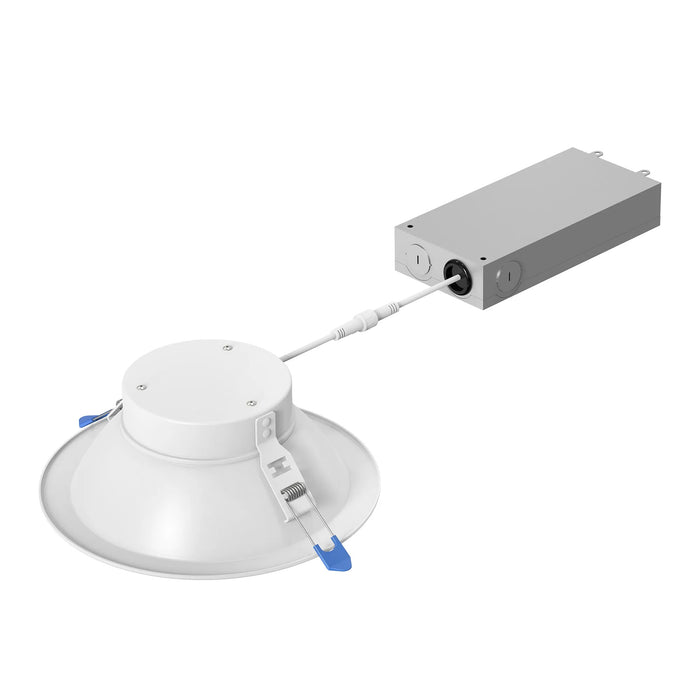

• Contractor-relevant details: MCTP5 switch located on the light engine, isolated remote driver for improved thermal management, Type IC rated, wet-location approved, 50,000-hour rated life, cUL Listed, California Title 24/JA8 compliant, and backed by a 5-year warranty.

Performance / Benefits

The CRLB8-18-30W-MCTP5-WH combines three wattage levels and five color temperatures into one fixture, reducing inventory while allowing installers to optimize lighting on-site. Its all-in-one recessed design eliminates the need for a separate housing, while high CRI, smooth dimming, and wet-location approval provide dependable performance for demanding residential and commercial applications.
