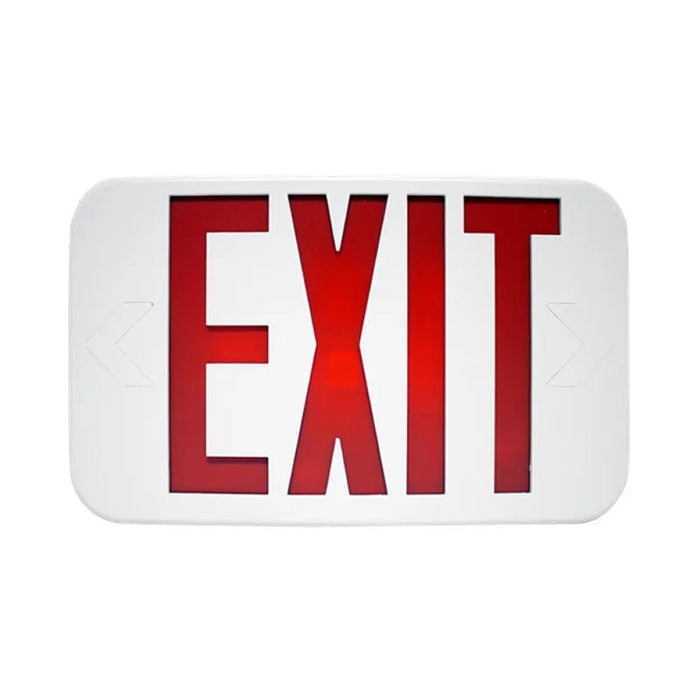

Westgate LED Exit Fixture Color Selectable with 90-Min Emergency

Product Overview

The Westgate XTU-RG-EM is a color-selectable LED exit sign with integrated 90-minute emergency battery backup designed for commercial emergency egress lighting applications. Operating on 120/277VAC, the exit sign provides illuminated emergency egress guidance with selectable red or green LED lettering for offices, schools, retail spaces, hospitals, corridors, stairwells, and other public buildings requiring code-compliant emergency signage.

Key Features & Design

• Functionality: Provides illuminated exit signage with color-selectable LED lettering, offering two color options for visibility in different environments.
• Installation context: Designed for wall-mounted or ceiling-mounted commercial emergency exit signage installations in offices, schools, hospitals, retail facilities, public buildings, corridors, stairwells, ramps, and other indoor egress pathways requiring illuminated emergency guidance.
• Notable specifications: 120/277VAC dual-voltage operation; 1W power consumption; selectable red or green LED lettering; integrated 1.2V 1000mAh nickel cadmium emergency battery; minimum 90-minute emergency illumination; injection-molded thermoplastic ABS housing with polycarbonate cover; UL 94V-0 flame rating; single- or double-face universal configuration; 6-inch lettering with 3/4-inch stroke; charge indicator LED and push-to-test switch; maximum 24-hour recharge time; universal J-box mounting pattern; IP20 indoor rating; white finish; operating temperature range of 68°F to 104°F; UL listed; 3-year warranty.
• Contractor-relevant details: Selectable red/green lens configuration allows field color adjustment without replacing the fixture, helping simplify inventory management and code-compliance flexibility. Universal single- or double-face configuration and standard J-box mounting support streamlined installation across varied commercial applications, while the integrated battery backup and push-to-test switch simplify ongoing maintenance and inspection requirements.

Performance / Benefits

In commercial emergency lighting applications, the XTU-RG-EM provides reliable illuminated exit guidance during both normal operation and power outages through its integrated 90-minute emergency battery backup system. Selectable red or green LED lettering allows flexible installation across varying code requirements and building preferences, while energy-efficient LED operation supports long-term maintenance reduction and low operating costs. Its thermoplastic flame-rated housing and universal mounting design support dependable long-term indoor performance in high-traffic commercial environments.
