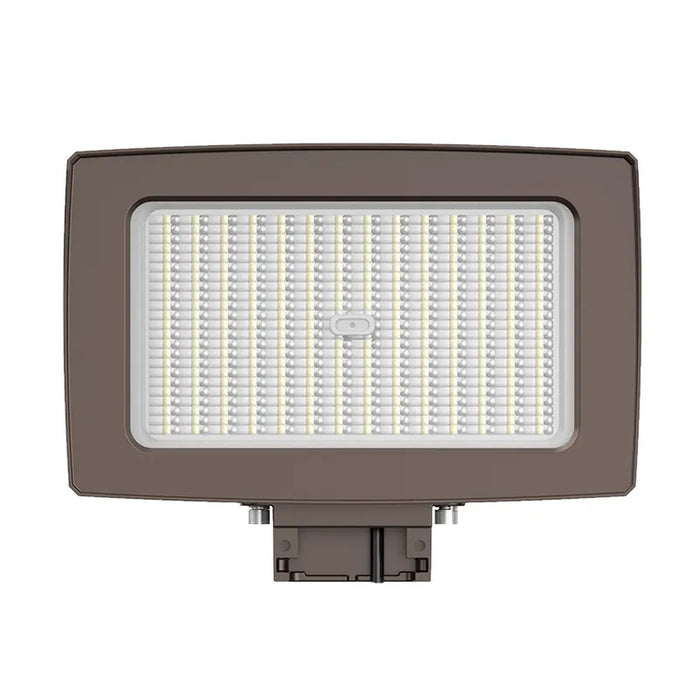

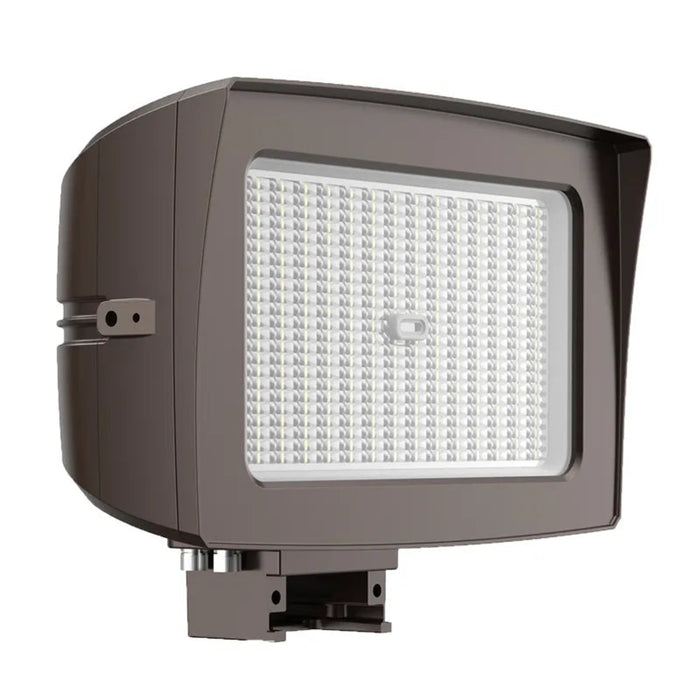

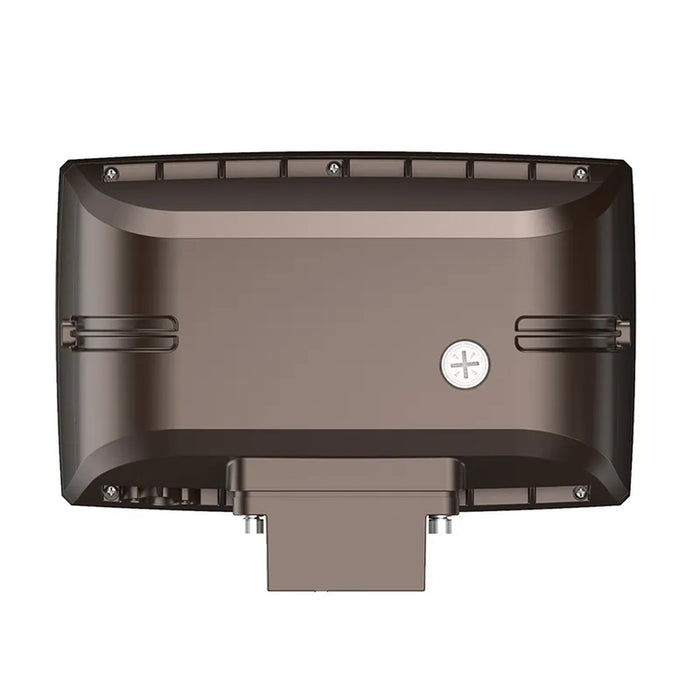

Westgate LF4MAX-LG-150W-MCTPB-P-480V Large LED Flood Light 75-150W Selectable CCT

Product Overview

The Westgate LF4MAX-LG-150W-MCTPB-P-480V is a large round-back LED flood light designed for outdoor commercial and site lighting. Operating at 480V, it features selectable 75W/100W/150W output, selectable CCT, adjustable beam angle, and an integrated photocell for flexible project configuration.

Key Features & Design

• Functionality: Selectable 75W/100W/150W output with 3000K/4000K/5000K CCT, 0-10V dimming, adjustable beam angle, and photocell with disconnect switch.
• Installation context: Ideal for general site lighting, alleys, loading docks, doorways, pathways, and parking areas, as well as replacing existing HID flood lights and wall packs.
• Notable specifications: 480V AC input, 10,500/14,000/21,000 lumens, 140 LPW efficacy, CRI ≥70, IP65 rating, and 70,000-hour rated life.
• Contractor-relevant details: Features die-cast aluminum housing with powder-coat finish, 6kV surge protection, a 6-foot SJTW 18/3 AWG cord, wet-location suitability, and multiple compatible mounting options.

Performance / Benefits

Selectable wattage, CCT, and beam angle allow contractors to configure one high-output fixture for multiple outdoor lighting requirements. The 480V input and up to 21,000-lumen output make this model suitable for commercial site and area lighting projects requiring high-voltage operation.
