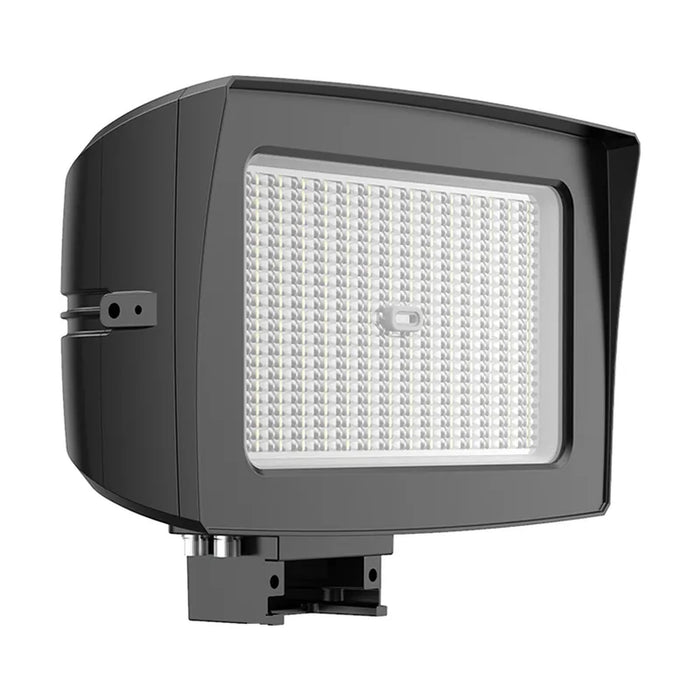

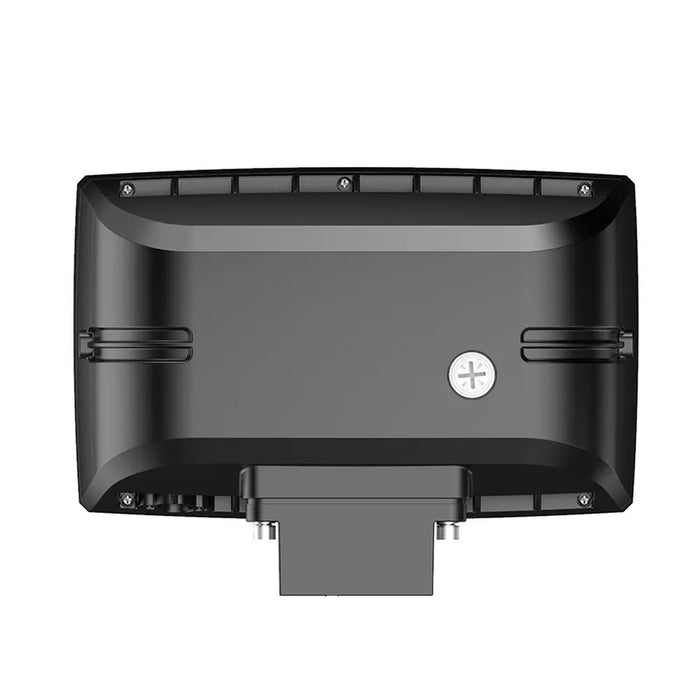

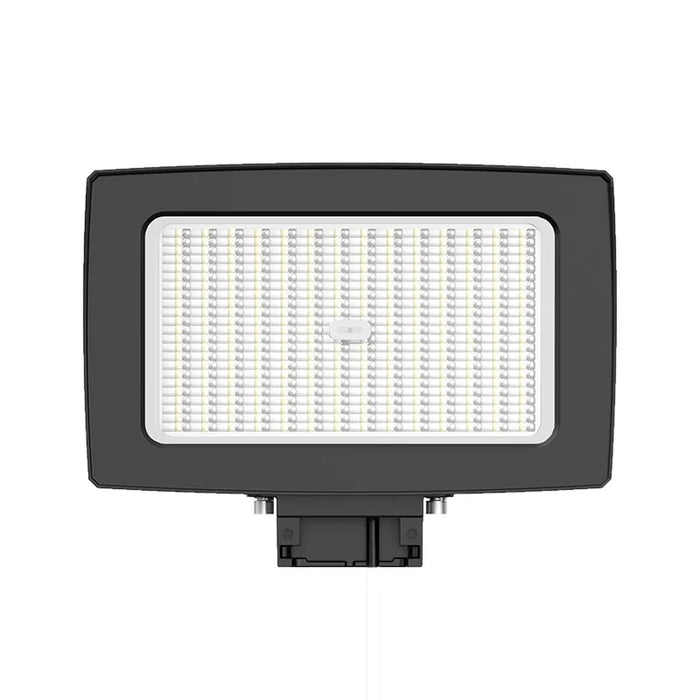

Westgate LF4MAX-LG-75-150W-MCTPB-P-BK Large LED Flood Light 75-150W Selectable CCT

Product Overview

The Westgate LF4MAX-LG-75-150W-MCTPB-P-BK is a large round-back LED flood light with a black finish designed for outdoor commercial and site lighting. Selectable 75W/100W/150W output, selectable CCT, adjustable beam angle, and an integrated photocell provide flexible configuration for a range of outdoor lighting projects.

Key Features & Design

• Functionality: Selectable 75W/100W/150W output with 3000K/4000K/5000K CCT, 0-10V dimming, adjustable beam angle, and photocell with disconnect switch.
• Installation context: Ideal for general site lighting, alleys, loading docks, doorways, pathways, and parking areas, as well as replacing existing HID flood lights and wall packs.
• Notable specifications: 120-277V AC input, 10,500/14,000/21,000 lumens, 140 LPW efficacy, CRI ≥70, IP65 rating, and 70,000-hour rated life.
• Contractor-relevant details: Die-cast aluminum housing with powder-coat finish, 6kV surge protection, 6-foot SJTW 18/3 AWG cord, wet-location suitability, and multiple compatible mounting options.

Performance / Benefits

Selectable wattage, CCT, and beam angle allow contractors to configure one high-output fixture for multiple outdoor lighting requirements. With up to 21,000 lumens and multiple mounting options, the fixture provides flexibility for new site-lighting installations and HID flood light or wall-pack replacement projects.
