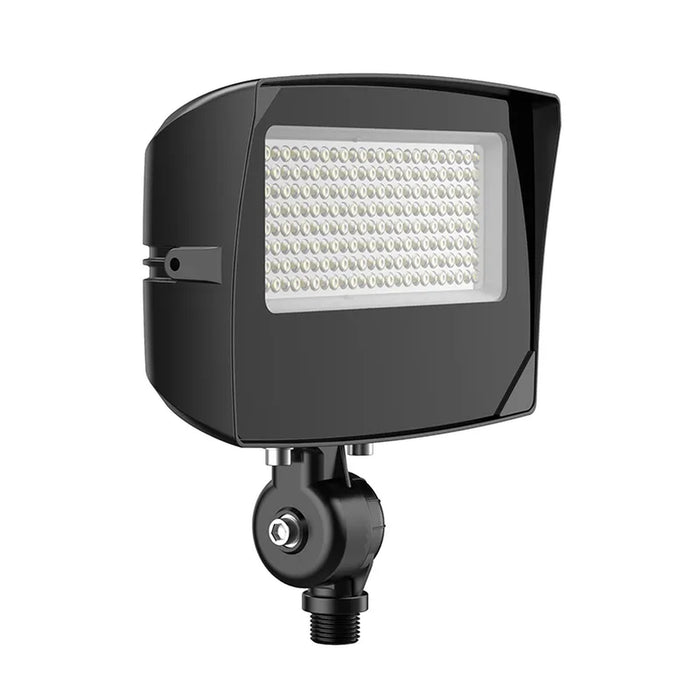

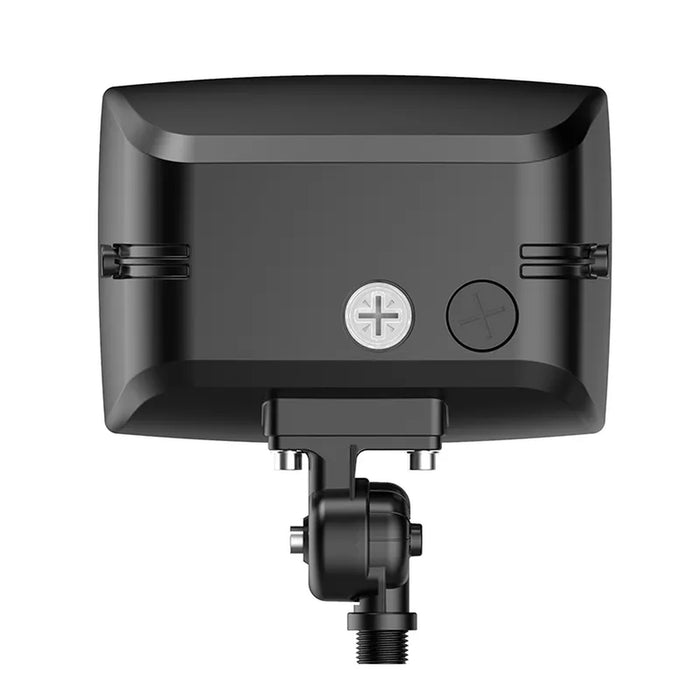

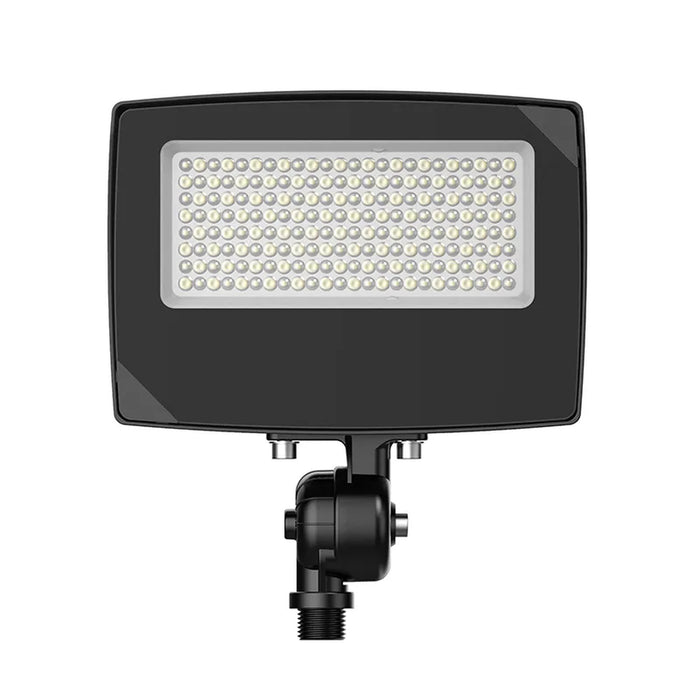

Westgate LF4MAX-MD-20-50W-MCTPB-KN-P-BK 20W/30W/50W LED Flood Light - Black

Product Overview

The Westgate LF4MAX-MD-20-50W-MCTPB-KN-P-BK is a black round-back LED flood light designed for configurable outdoor commercial lighting. Selectable 20W, 30W, or 50W output and 3000K, 4000K, or 5000K color temperature allow the fixture to accommodate a range of site lighting requirements. It operates on 120-277V AC and includes a photocell with disconnect switch for automatic lighting control.

Key Features & Design

• Functionality: Selectable 20W/30W/50W output with 3000K/4000K/5000K CCT, 0-10V dimming, adjustable beam angle, and included photocell.
• Installation context: Suitable for general site lighting, alleys, loading docks, doorways, pathways, and parking areas, as well as replacement of existing HID flood lights and wall packs.
• Notable specifications: 120-277V AC, 50/60Hz; 20W/30W/50W; 2,800/4,200/7,000 lumens; 140 LPW; CRI ≥70; 3000K/4000K/5000K; IP65; 70,000-hour rated life.
• Contractor-relevant details: Features a 90° adjustable 1/2-inch knuckle mount, die-cast aluminum housing with powder-coat finish, 6kV surge protection, 1.5-ft SJTW 18/3 AWG cable, wet-location suitability, and a 7-year warranty.

Performance / Benefits

Selectable wattage, CCT, and beam angle give contractors flexibility to configure the fixture for different outdoor lighting requirements without changing fixture families. The three selectable outputs provide 2,800 lumens at 20W, 4,200 lumens at 30W, and 7,000 lumens at 50W, while 0-10V dimming and the included photocell provide additional lighting control.
