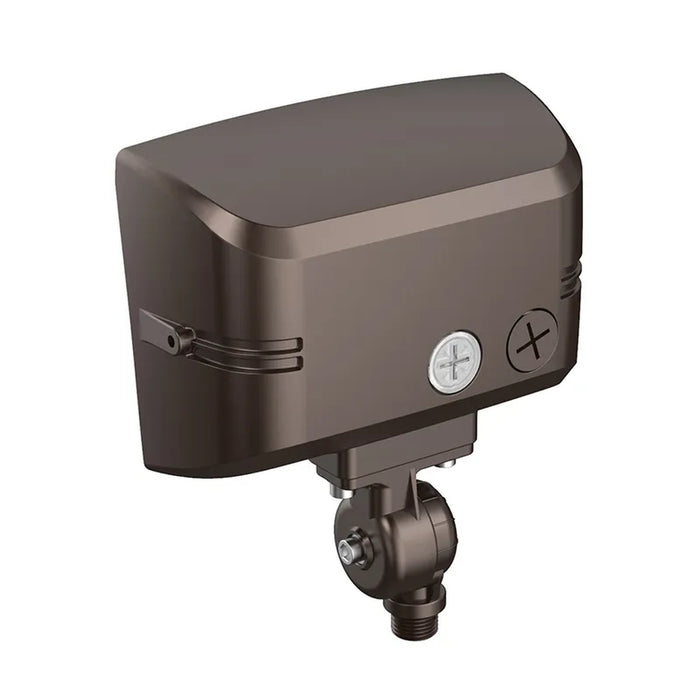

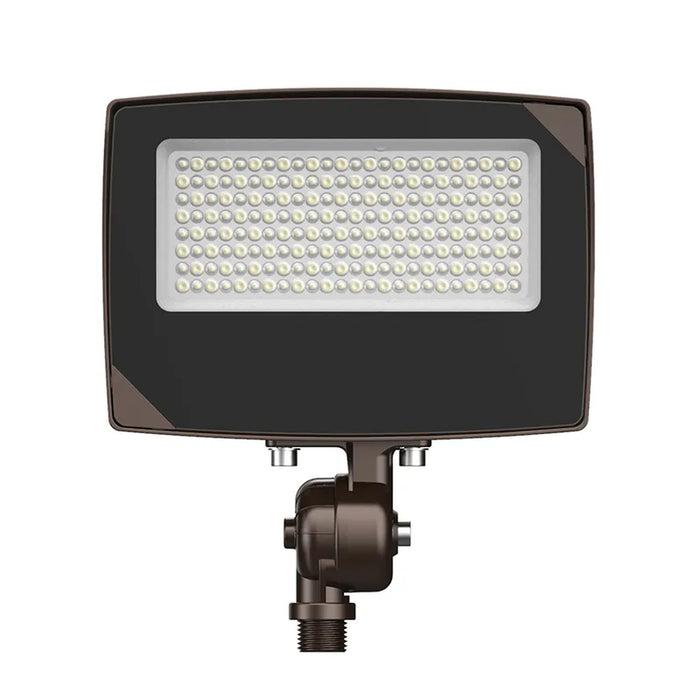

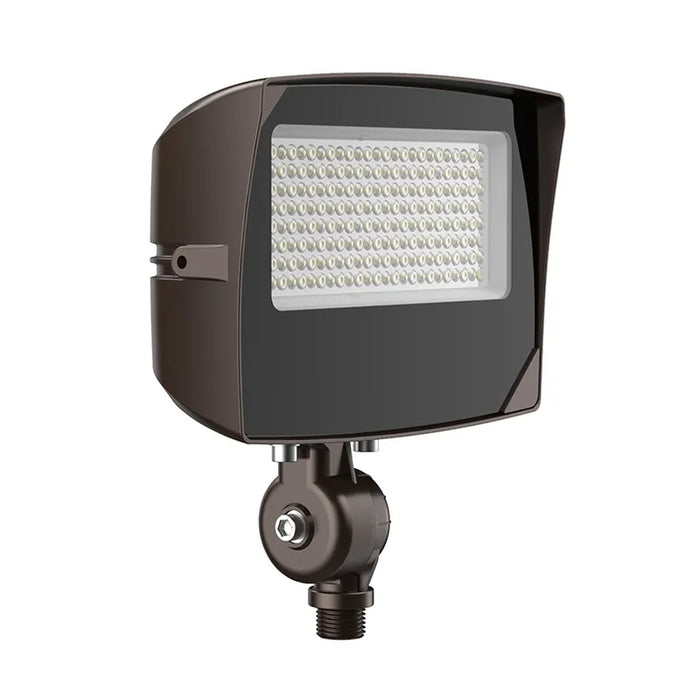

Westgate LF4MAX-MD-20-50W-MCTPB-KN-P 20W/30W/50W LED Flood Light - Bronze

Product Overview

The Westgate LF4MAX-MD-20-50W-MCTPB-KN-P is a bronze round-back LED flood light designed for configurable outdoor commercial lighting. Selectable 20W, 30W, or 50W output and 3000K, 4000K, or 5000K color temperature provide flexibility for a range of site lighting applications.

Key Features & Design

• Functionality: Selectable 20W/30W/50W output with 3000K/4000K/5000K CCT, 0-10V dimming, adjustable beam angle, and included photocell with disconnect switch.
• Installation context: Designed for general site lighting, alleys, loading docks, doorways, pathways, and parking areas, and suitable for replacing existing HID flood lights and wall pack.
• Notable specifications: 120-277V AC, 50/60Hz; 2,800/4,200/7,000 lumens; 140 LPW; CRI ≥70; IP65; 70,000-hour rated life.
• Contractor-relevant details: 90° adjustable 1/2-inch knuckle mount, die-cast aluminum housing with powder-coat finish, 6kV surge protection, 1.5-ft SJTW 18/3 AWG cable, wet-location suitability, and 7-year warranty.

Performance / Benefits

Selectable wattage, CCT, and beam angle allow contractors to configure one fixture for multiple outdoor lighting requirements. The fixture delivers 2,800 lumens at 20W, 4,200 lumens at 30W, and 7,000 lumens at 50W, with 0-10V dimming and photocell control adding further installation flexibility.
