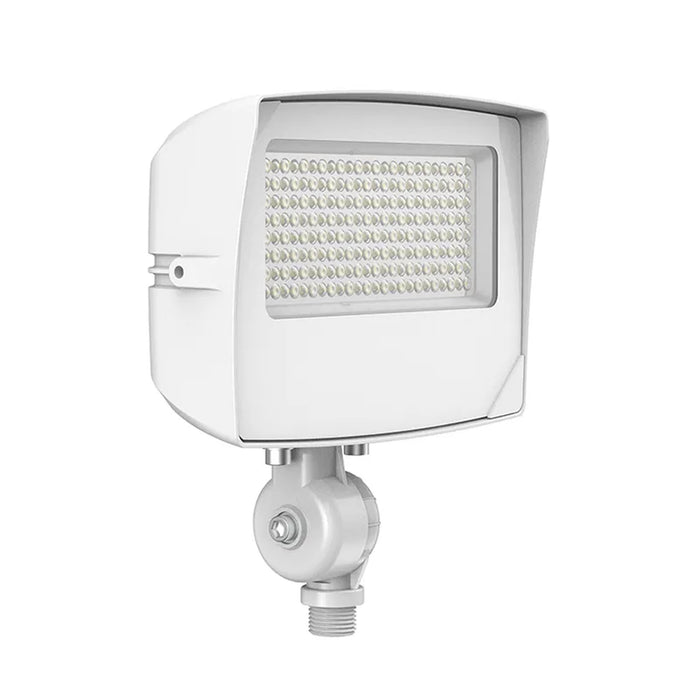

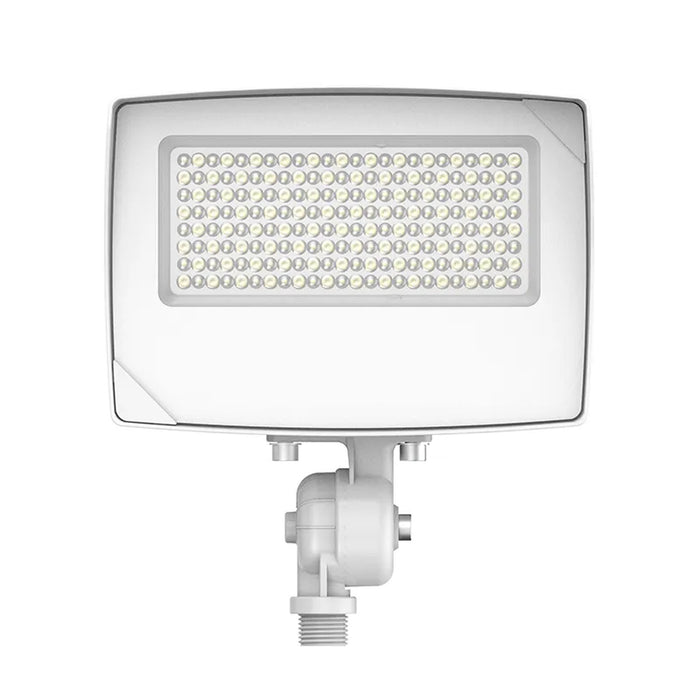

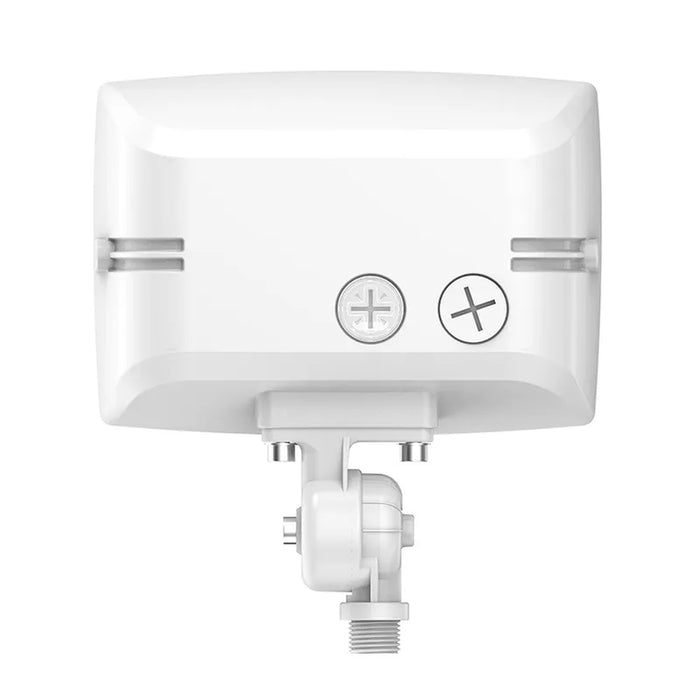

Westgate LF4MAX-MD-20-50W-MCTPB-KN-P-WH Medium LED Flood Light 20-50W Selectable CCT 120-277V-White

Product Overview

The Westgate LF4MAX-MD-20-50W-MCTPB-KN-P-WH is a white round-back LED flood light designed for configurable outdoor commercial lighting. Selectable 20W, 30W, or 50W output and 3000K/4000K/5000K color temperature allow one fixture to accommodate multiple lighting requirements. It operates on 120-277V and includes a photocell with disconnect switch.

Key Features & Design

• Functionality: Selectable 20W/30W/50W operation with corresponding 2,800/4,200/7,000-lumen output, selectable 3000K/4000K/5000K CCT, 0-10V dimming, adjustable beam angle, and included photocell.
• Installation context: Suitable for general site lighting, alleys, loading docks, doorways, pathways, and parking areas. The manufacturer also identifies it for replacing existing HID flood lights and wall packs.
• Notable specifications: 120-277VAC, 50/60Hz; 20W/30W/50W; 2,800/4,200/7,000 lm; 140 LPW; CRI ≥70; IP65; 70,000-hour rated life; 9.76 in. L × 9.74 in. W × 3.62 in. H.
• Contractor-relevant details: Features bottom-access CCT and wattage switches, a 90° adjustable 1/2-in. knuckle mount, die-cast aluminum housing, 6kV surge protection, 1.5-ft SJTW 18/3 AWG cord, wet-location suitability, and a 7-year warranty.

Performance / Benefits

Selectable wattage, color temperature, and beam angle allow contractors to configure one fixture for multiple outdoor lighting requirements. The 140-lumen-per-watt efficacy, 70,000-hour rated life, photocell, 0-10V dimming, and wet-location construction provide a flexible solution for commercial exterior installations
