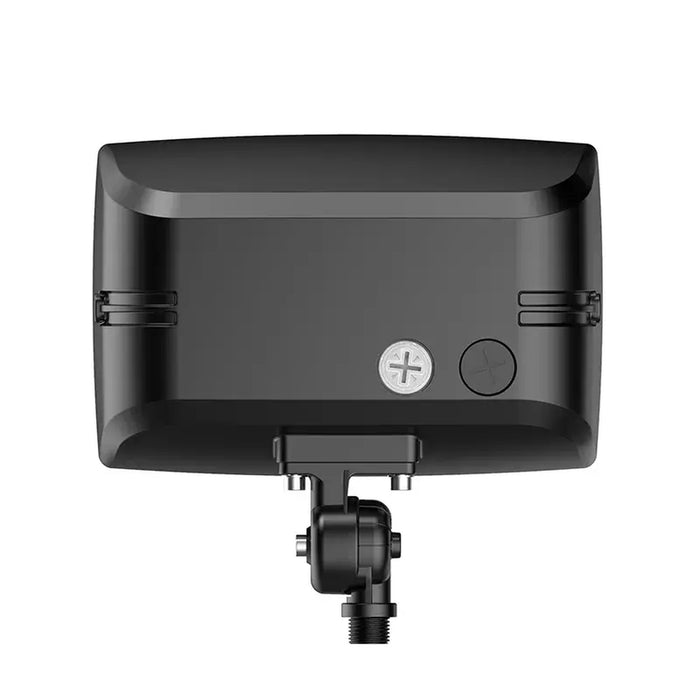

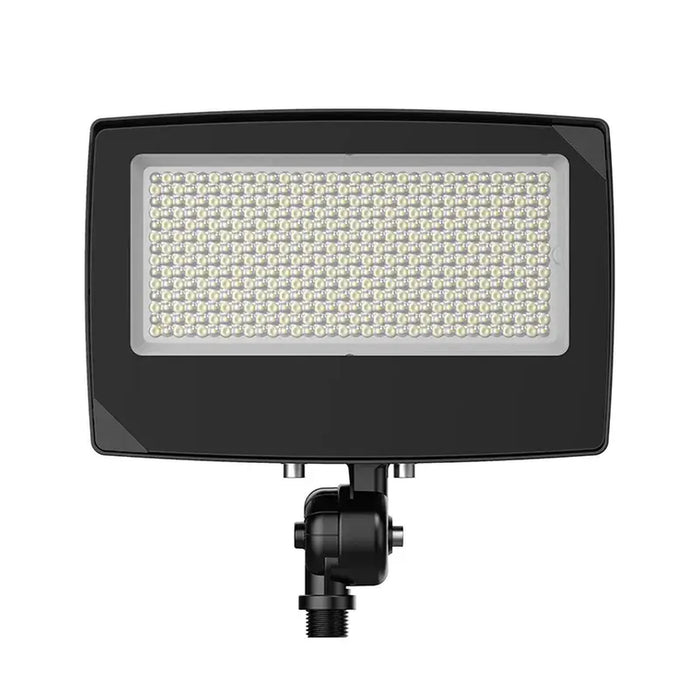

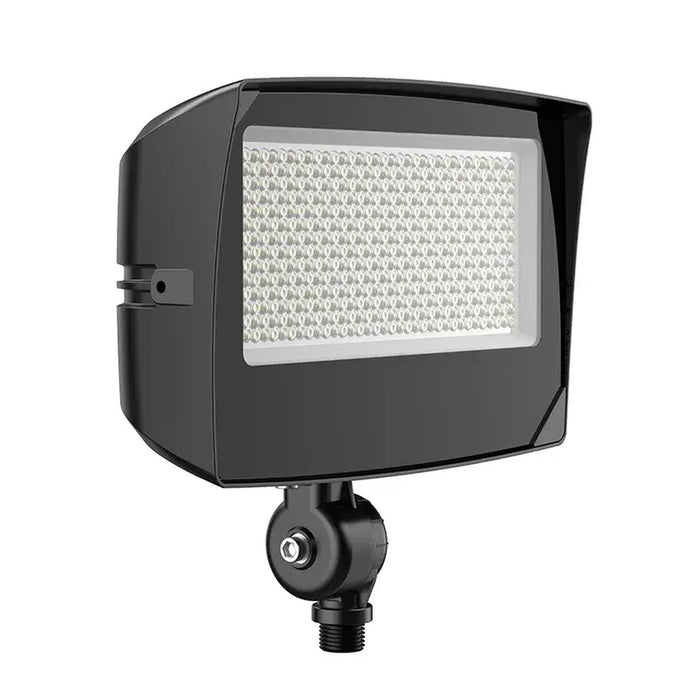

Westgate LF4MAX-MD-45-80W-MCTPB-KN-P-BK Medium LED Flood Light 45-80W Selectable CCT - Black

Product Overview

The Westgate LF4MAX-MD-45-80W-MCTPB-KN-P-BK is a black round-back LED flood light designed for outdoor commercial and site lighting. Selectable 45W, 60W, or 80W output, selectable CCT, adjustable beam angle, and an integrated photocell provide flexible field configuration.

Key Features & Design

• Functionality: Selectable 45W/60W/80W output with 3000K/4000K/5000K CCT, 0-10V dimming, adjustable beam angle, and photocell with disconnect switch.
• Installation context: Designed for general site lighting, alleys, loading docks, doorways, pathways, and parking areas, and for replacing existing HID flood lights and wall packs.
• Notable specifications: 120-277V AC; 6,300/8,400/11,200 lumens; 140 LPW; CRI ≥70; IP65; 70,000-hour rated life; 9.74 in L × 3.62 in W × 9.76 in H.
• Contractor-relevant details: 90° adjustable 1/2-in. knuckle mount, die-cast aluminum housing, 6kV surge protection, wet-location suitability, and 7-year warranty.

Performance / Benefits

Selectable wattage, CCT, and beam angle allow one fixture to accommodate multiple outdoor lighting requirements while reducing the need to stock separate fixed-output configurations. The photocell, adjustable knuckle mount, and 0-10V dimming provide additional installation and control flexibility.
