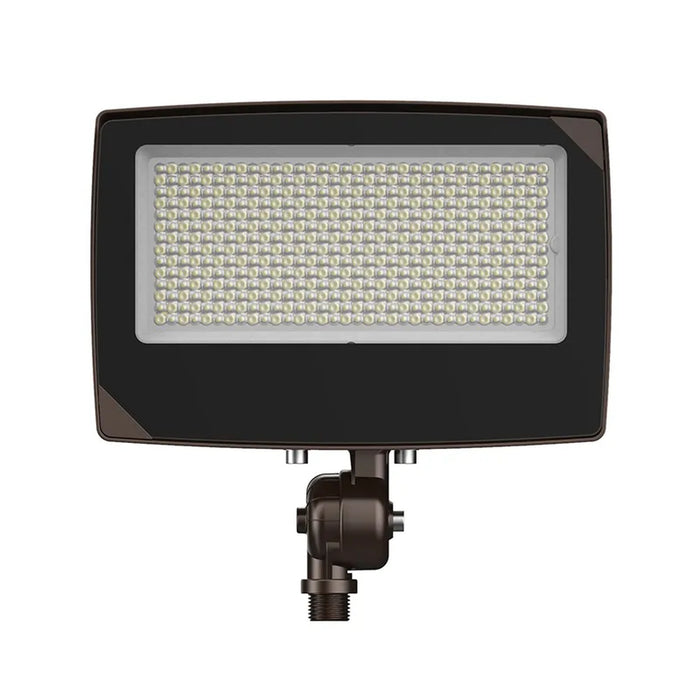

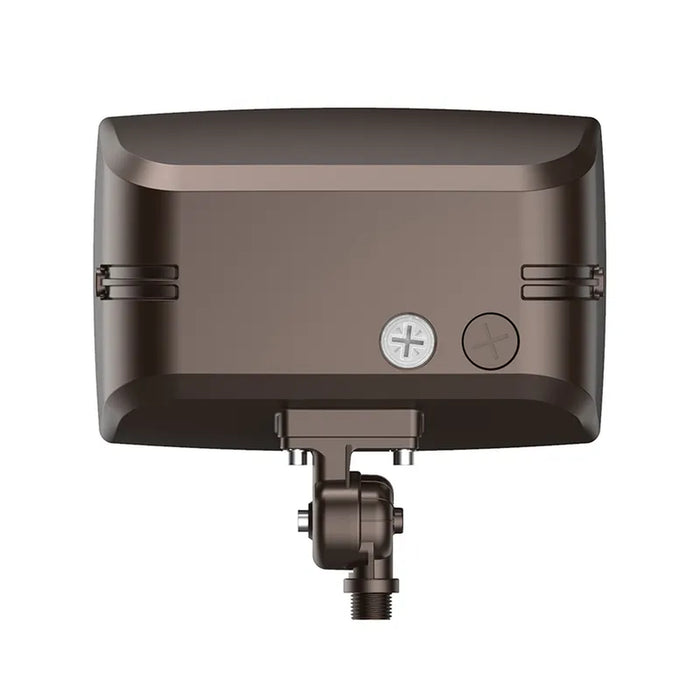

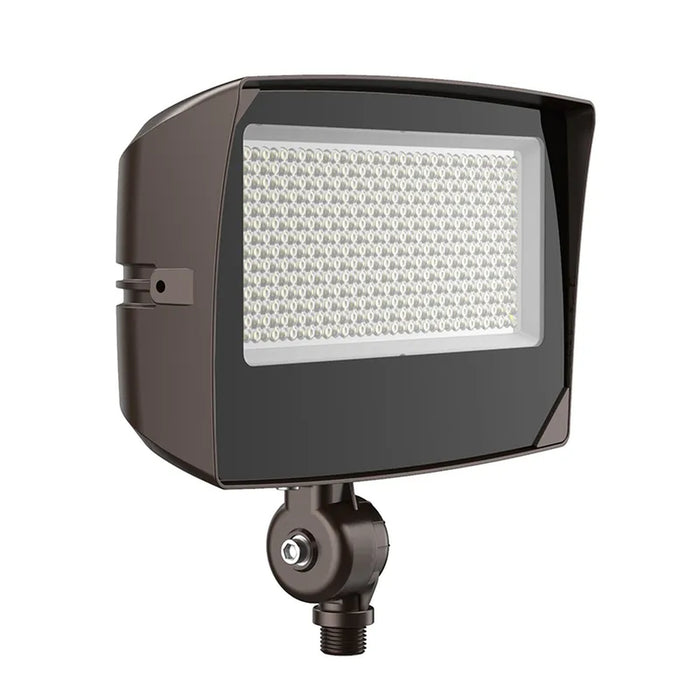

Westgate LF4MAX-MD-45-80W-MCTPB-KN-P Medium LED Flood Light 45-80W Selectable CCT

Product Overview

The Westgate LF4MAX-MD-45-80W-MCTPB-KN-P is a medium round-back LED flood light with a bronze finish designed for outdoor commercial and site lighting. Selectable 45W/60W/80W output, selectable CCT, adjustable beam angle, and an integrated photocell provide flexible configuration for a range of outdoor lighting applications.

Key Features & Design

• Functionality: Selectable 45W/60W/80W output with 3000K/4000K/5000K CCT, 0-10V dimming, adjustable beam angle, and photocell with disconnect switch.
• Installation context: Ideal for general site lighting, alleys, loading docks, doorways, pathways, and parking areas, as well as replacing existing HID flood lights and wall packs.
• Notable specifications: 120-277V AC input, 6,300/8,400/11,200 lumens, 140 LPW efficacy, CRI ≥70, IP65 rating, and 70,000-hour rated life.
• Contractor-relevant details: Die-cast aluminum housing with powder-coat finish, 90° adjustable 1/2-inch knuckle mount, 6kV surge protection, 1.5-foot SJTW 18/3 AWG cable, and wet-location suitability.

Performance / Benefits

Selectable wattage, CCT, and beam angle allow contractors to configure one fixture for multiple outdoor lighting requirements. With up to 11,200 lumens, an adjustable knuckle mount, and integrated photocell, this fixture provides flexibility for new site-lighting installations and HID flood light or wall-pack replacement projects.
