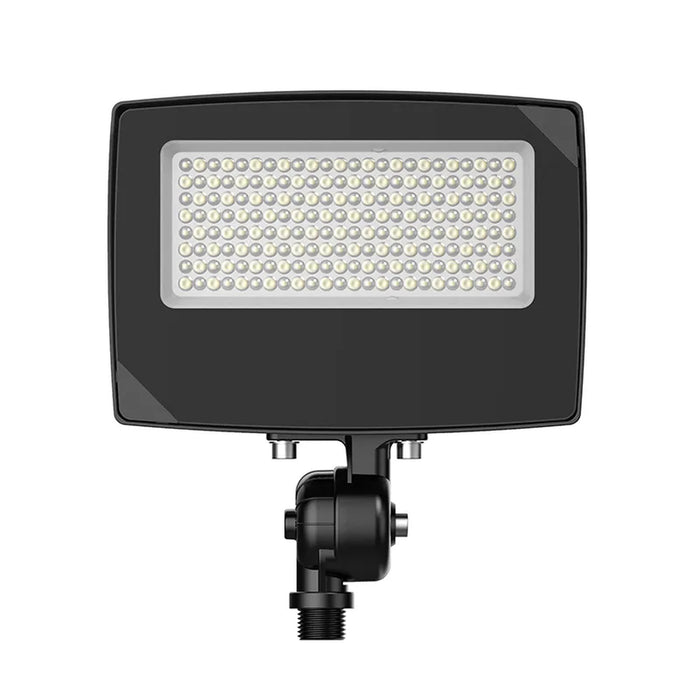

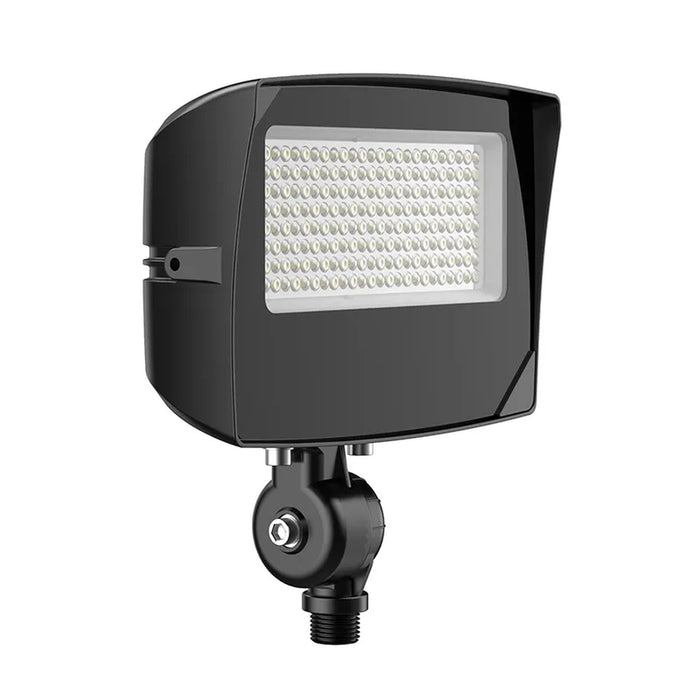

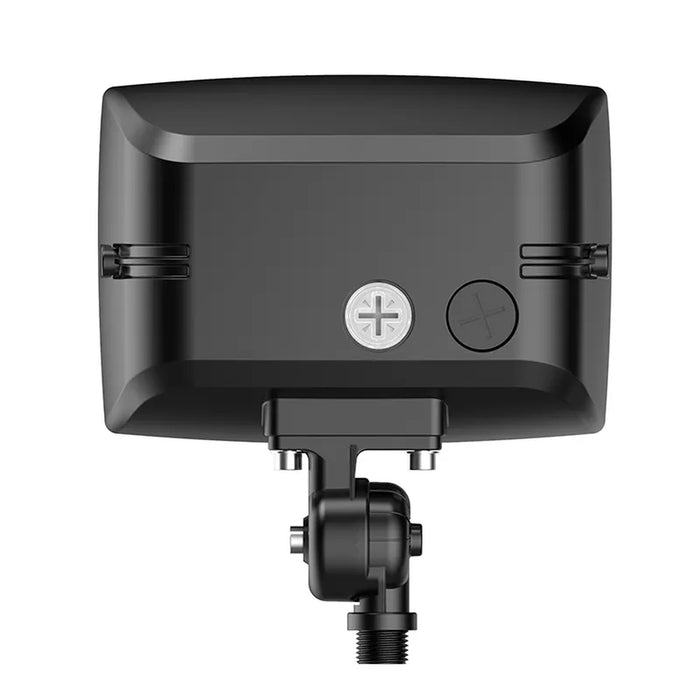

Westgate LF4MAX-SM-15-35W-MCTPB-KN-P-BK Small 15W/25W/35W LED Flood Light - Black

Product Overview

The Westgate LF4MAX-SM-15-35W-MCTPB-KN-P-BK is a small round-back LED flood light with a black finish designed for outdoor commercial lighting. electable 15W, 25W, or 35W output, selectable CCT, adjustable beam angle, and an integrated photocell provide flexible field configuration for a variety of outdoor lighting applications.

Key Features & Design

• Functionality: Selectable 15W/25W/35W output with 3000K/4000K/5000K CCT, 0-10V dimming, adjustable beam angle, and photocell.
• Installation context: Designed for general site lighting, alleys, loading docks, doorways, pathways, and parking areas, as well as replacement of existing HID flood lights and wall packs.
• Notable specifications: 120-277V AC; 2,100/3,500/4,900 lumens; 140 LPW; CRI ≥70; IP65; 70,000-hour rated life; 7.8 in L × 3.15 in W × 8.87 in H.
• Contractor-relevant details: 90° adjustable 1/2-in. knuckle mount, die-cast aluminum housing, 6kV surge protection, wet-location suitability, bottom-access wattage/CCT switches, and 7-year warranty.

Performance / Benefits

Selectable wattage, CCT, and beam angle allow one fixture to accommodate multiple outdoor lighting requirements while reducing the need for separate fixed-output configurations. The integrated photocell, adjustable knuckle mount, and 0-10V dimming provide additional installation and control flexibility.
