Westgate LF4MAX-SM-15-35W-MCTPB-KN-P-WH Small 15W/25W/35W LED Flood Light - White

Product Overview

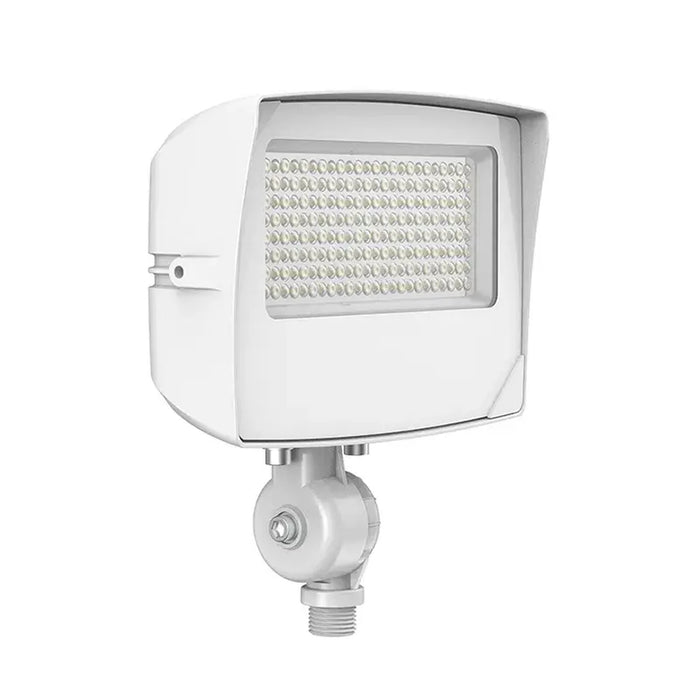

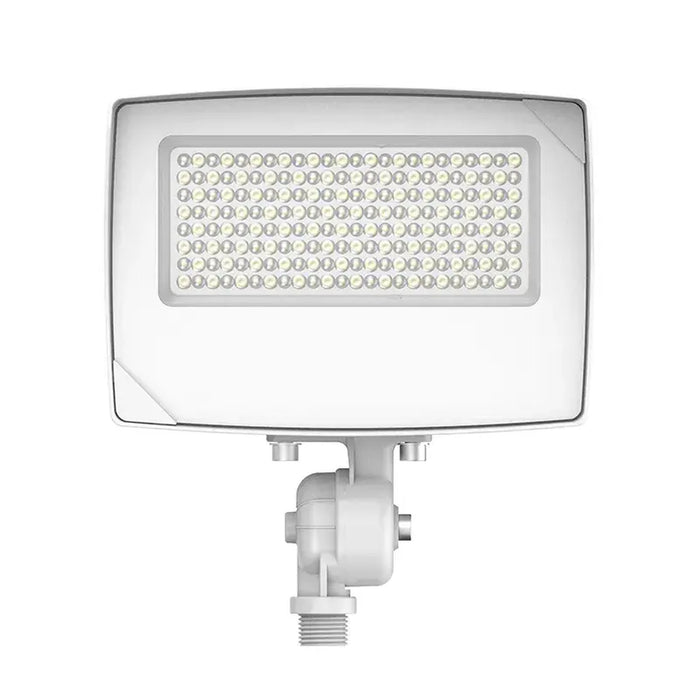

The Westgate LF4MAX-SM-15-35W-MCTPB-KN-P-WH is a small white round-back LED flood light designed for outdoor commercial and site lighting. Selectable 15W, 25W, or 35W output, selectable CCT, adjustable beam angle, and an integrated photocell provide flexible field configuration for a range of outdoor lighting applications.

Key Features & Design

• Functionality: Selectable 15W/25W/35W output with 3000K/4000K/5000K CCT, 0-10V dimming, adjustable beam angle, and photocell with disconnect switch.
• Installation context: Designed for general site lighting, alleys, loading docks, doorways, pathways, and parking areas, as well as replacement of existing HID flood lights and wall packs.
• Notable specifications: 120-277V AC, 50/60Hz; 2,100/3,500/4,900 lumens; 140 LPW; CRI ≥70; IP65; 70,000-hour rated life; 7.8 in L × 3.15 in W × 8.87 in H.

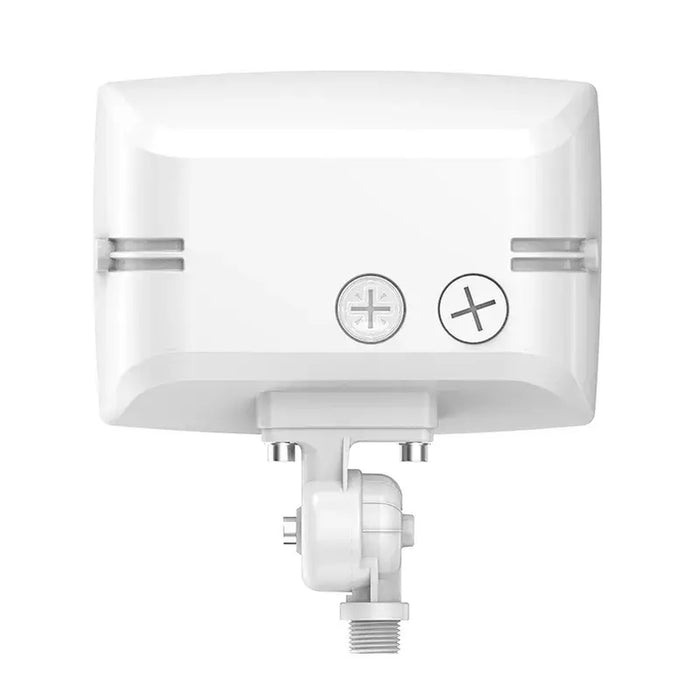

• Contractor-relevant details: Die-cast aluminum housing with powder-coat finish, 90° adjustable 1/2-inch knuckle mount, 6kV surge protection, wet-location suitability, bottom-access wattage/CCT switches, and 7-year warranty.

Performance / Benefits

Die-cast aluminum housing with powder-coat finish, 90° adjustable 1/2-inch knuckle mount, 6kV surge protection, wet-location suitability, bottom-access wattage/CCT switches, and 7-year warranty.
