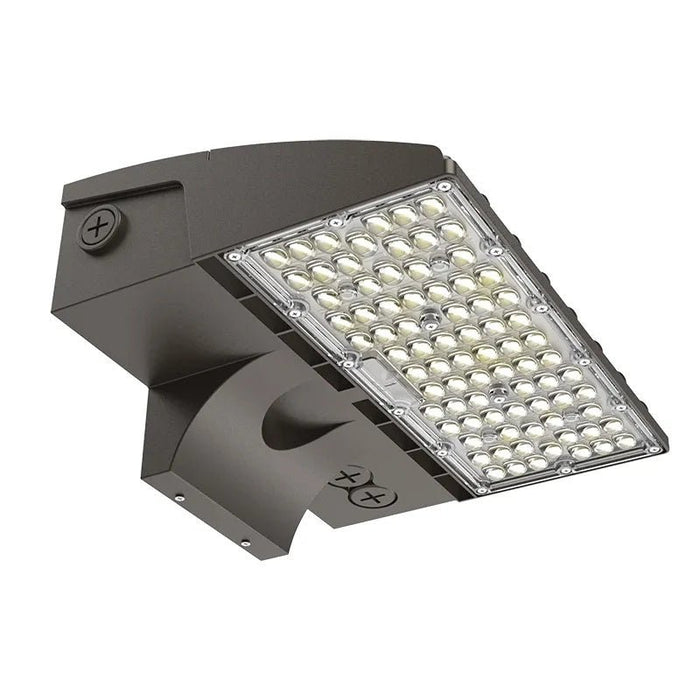

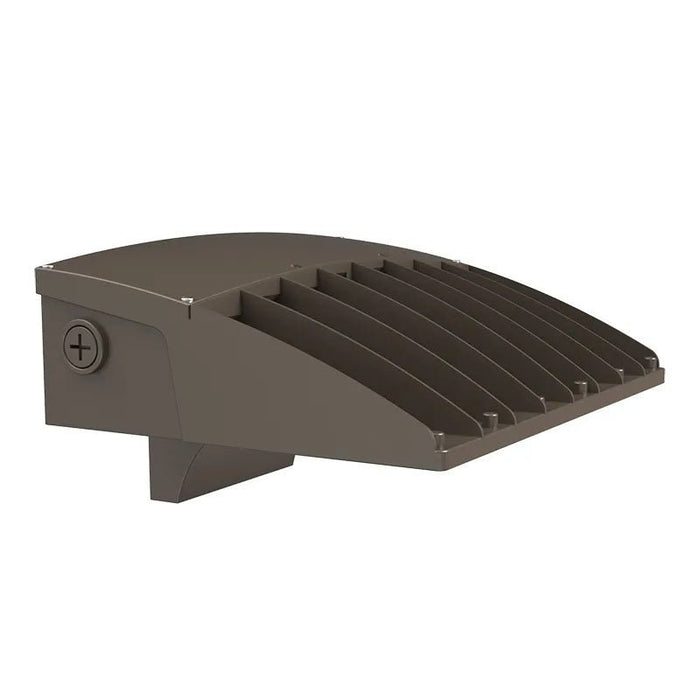

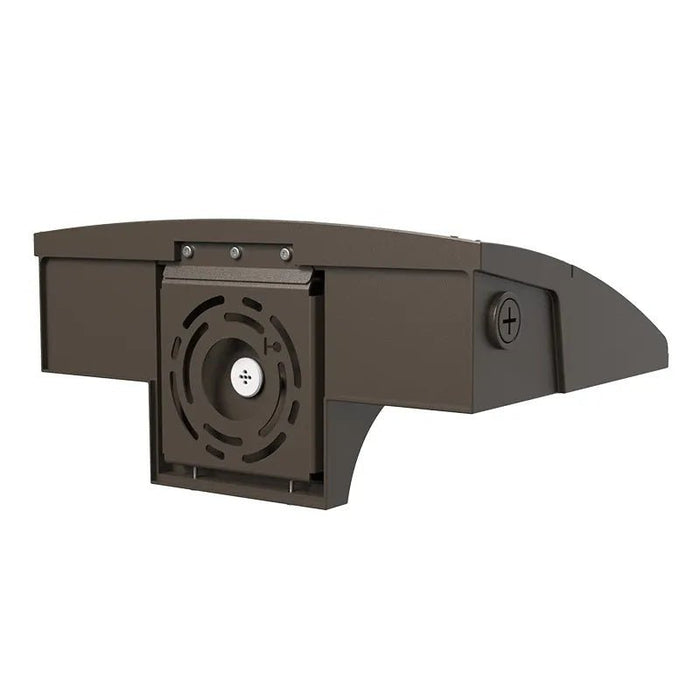

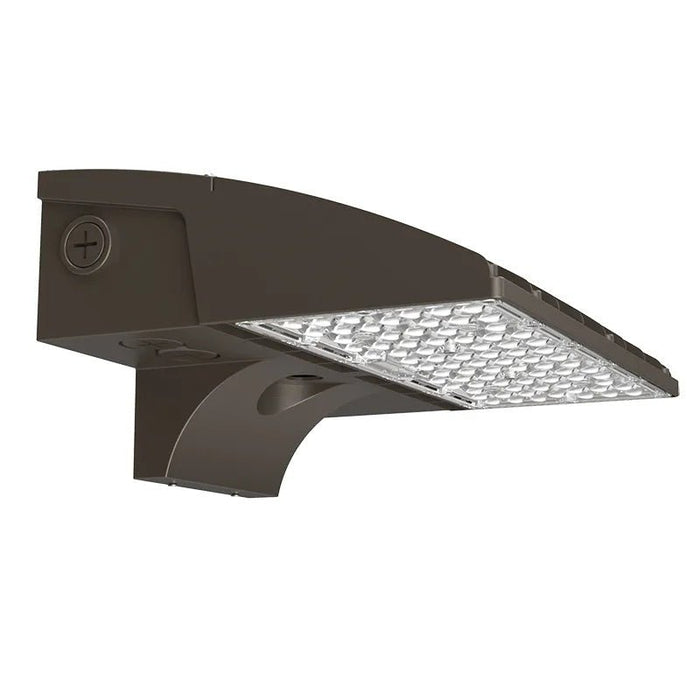

Westgate WPCX-36-60W-MCTP X-Gen LED Wall Pack 36W/48W/60W MCTP Bronze

Product Overview

The Westgate WPCX-36-60W-MCTP is an outdoor LED wall pack featuring selectable wattage and selectable color temperature. Designed for exterior lighting applications, it offers field-selectable 36W, 48W, or 60W operation with selectable 3000K, 4000K, and 5000K color temperatures. Its full cutoff design helps reduce glare and light spill while supporting commercial and industrial outdoor lighting applications.

Key Features & Design

• Functionality: Provides exterior illumination with selectable wattage (36W/48W/60W) and selectable color temperature settings.
• Installation context: Designed for wall-mounted outdoor lighting applications.
• Notable specifications: Voltage: 120-277VAC; Wattage Selectable: 36W/48W/60W; CCT Selectable: 3000K/4000K/5000K; Dimming: 0-10V; Lumens: Up to 8100LM; CRI: ≥80; Efficacy: 135 LPW; Finish: Dark Bronze; Rated Life: 70,000 Hours; IP65 Wet Location; Full Cutoff; Dark Sky Compliant; Certifications: UL Listed, DLC Listed.
• Contractor-relevant details: Field-selectable wattage and color temperature reduce SKU requirements and simplify project specification. Integrated 0-10V dimming, included DC button photocell, IP65 wet-location rating, and Dark Sky compliant full-cutoff optics support flexible installation across commercial and industrial exterior lighting applications.

Performance / Benefits

The WPCX-36-60W-MCTP provides configurable outdoor lighting through selectable wattage and color temperature settings while supporting 0-10V dimming operation. Its full cutoff optics help reduce glare and unwanted light spill, while the IP65-rated housing and durable die-cast aluminum construction support long-term performance in demanding outdoor environments. The included photocell and field-adjustable settings provide additional flexibility for commercial and industrial lighting projects.
